InRack CDU
Compact Cooling,
Big Performance
Efficient cooling for single high-density rack.

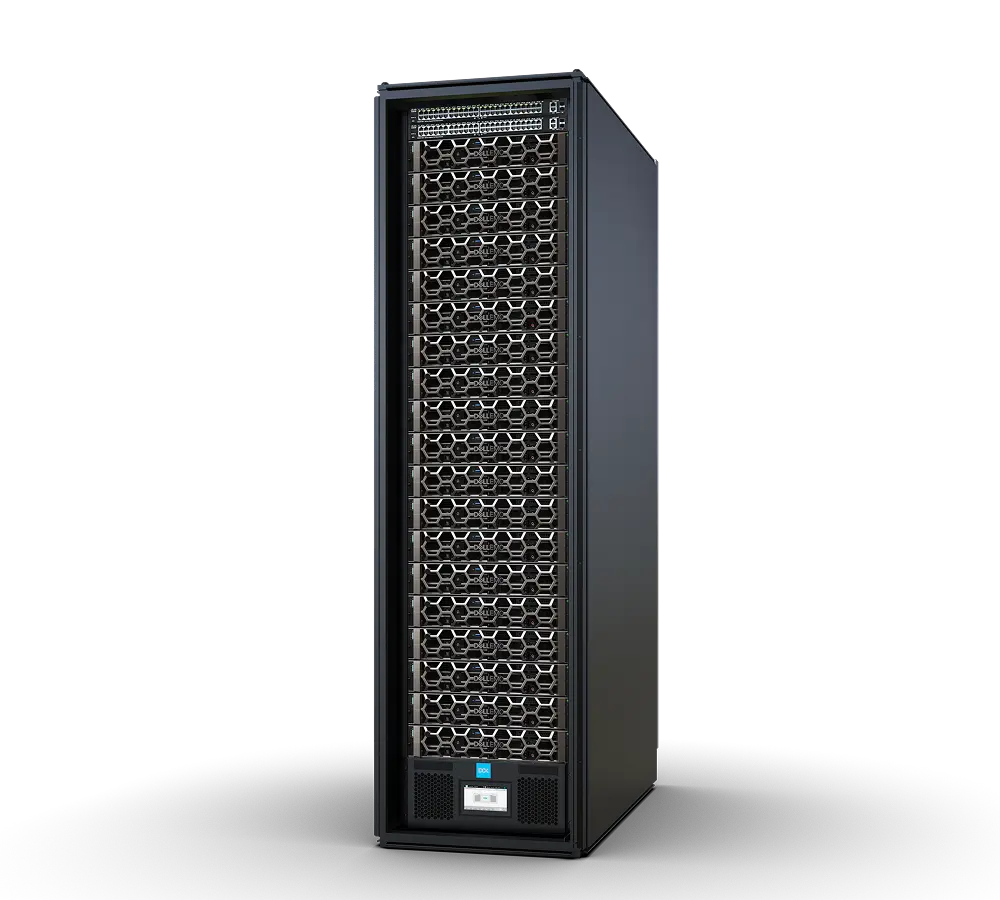

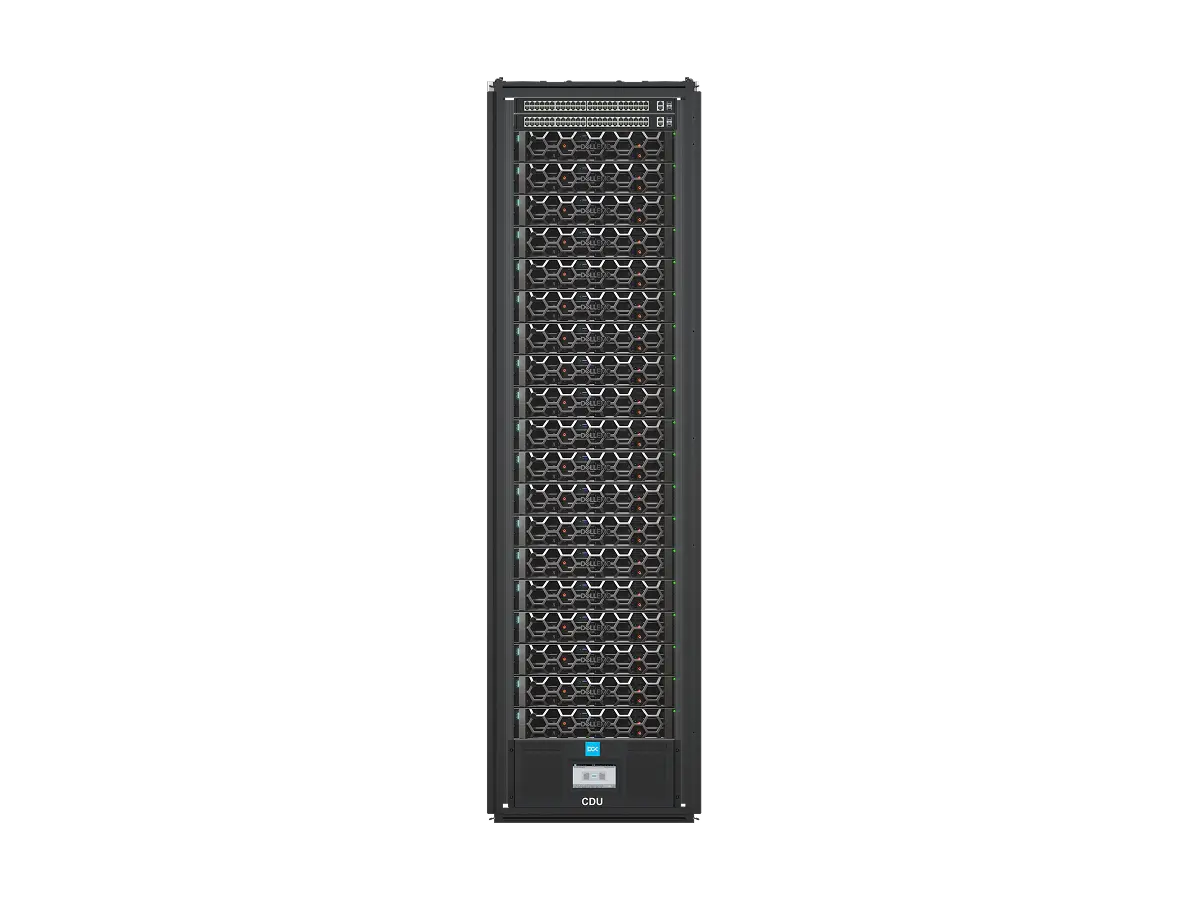

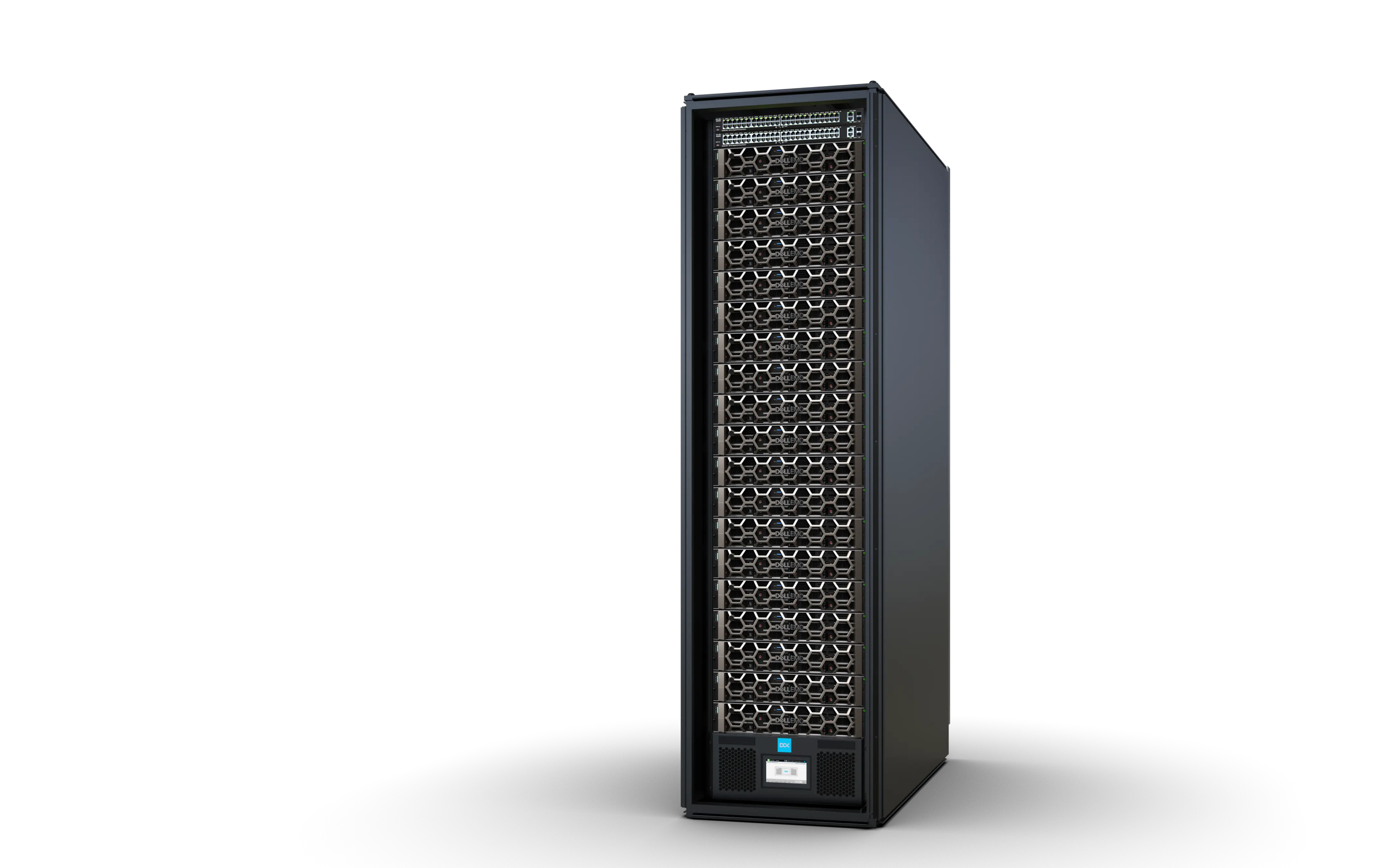

InRack CDU
Handling HPC clusters or GPU-powered applications, provides high-capacity cooling, eliminating the need for multi-unit systems by utilizing readily available ASHRAE W3/W4 warm water
120 kW
Heat Transfer Capacity
10°C
Approach Temperature
1P AC220V±5% 50/60Hz
Power Specifications
2 kW
Power Consumption
1056 / 448 / 4U mm
Dimension (L / W / H)
95 / 118 kg
Transport /Filled Weight
Capacity
Supports 1 AI-rack per CDU.
Performance
From 120 to even 150 kW of heat transfer capacity in certain scenarios.
Sustainability
Enables heat reuse with up to 60°C return temperature.
Power Density
Adaptive energy consumption up to 2 kW per 2 server racks.
InRack CDU
Designed to efficiently cool individual high-density server racks. Housed in a compact 4U chassis, this CDU uses innovative immersion pumps to provide an impressive 120kW of heat transfer capacity, supporting over 80 servers.
120 kW
Heat Transfer Capacity
2 kW
Power Draw
4U
Compact Design
Scaling Liquid Cooling
InRack CDU
Designed to efficiently cool individual high-density server racks.
120 kW
Heat Transfer Capacity
10°C
Approach Temperature
1P AC 220 V ± 5% 50/60 Hz
Power Specifications
1.3 kW
Power Consumption
1056 / 448 / 4U mm
Dimension (L / W / H)
95 / 118 kg
Transport /Filled Weight
5 MW FDU
Engineered for complete data halls in hyper-scale data centers.
5000 kW
Heat Transfer Capacity
4°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
95.3 (3+1 pumps, 3x31.8kW)
Power Consumption
3000 / 1500 / 2300 mm
Dimension (L / W / H)
5700 / 6500 kg
Transport /Filled Weight
