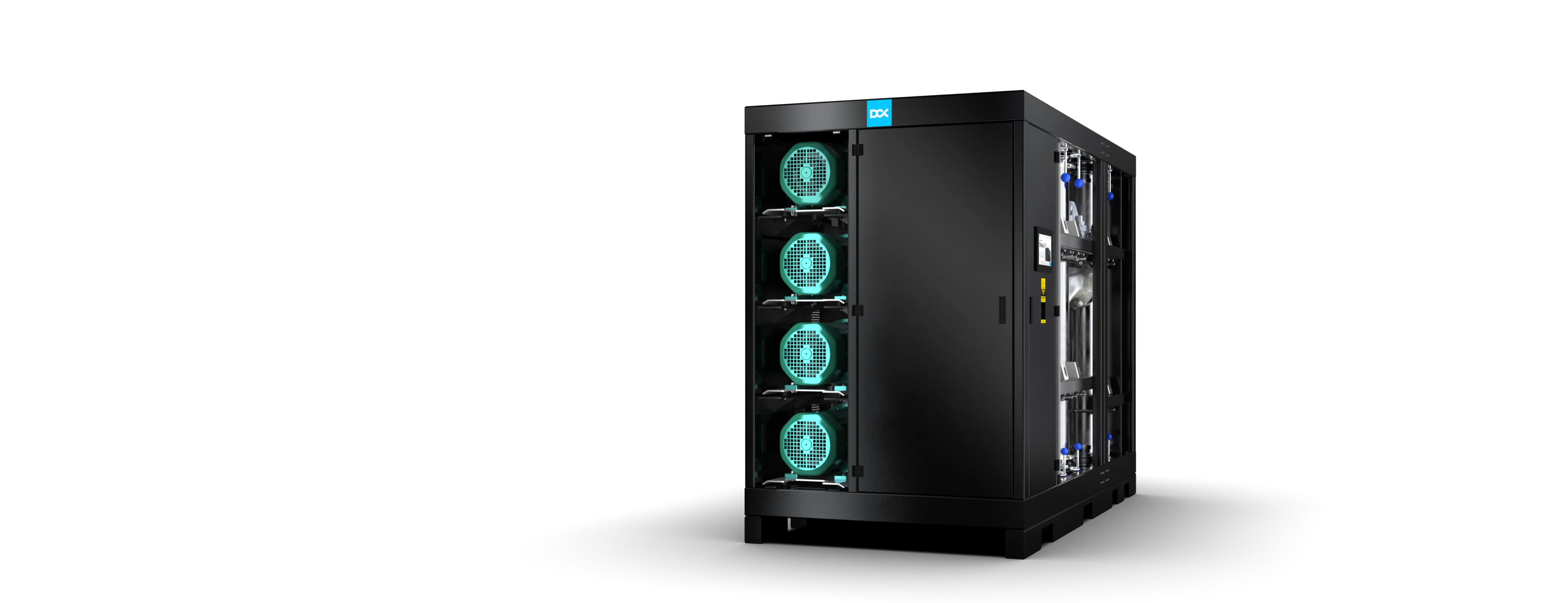

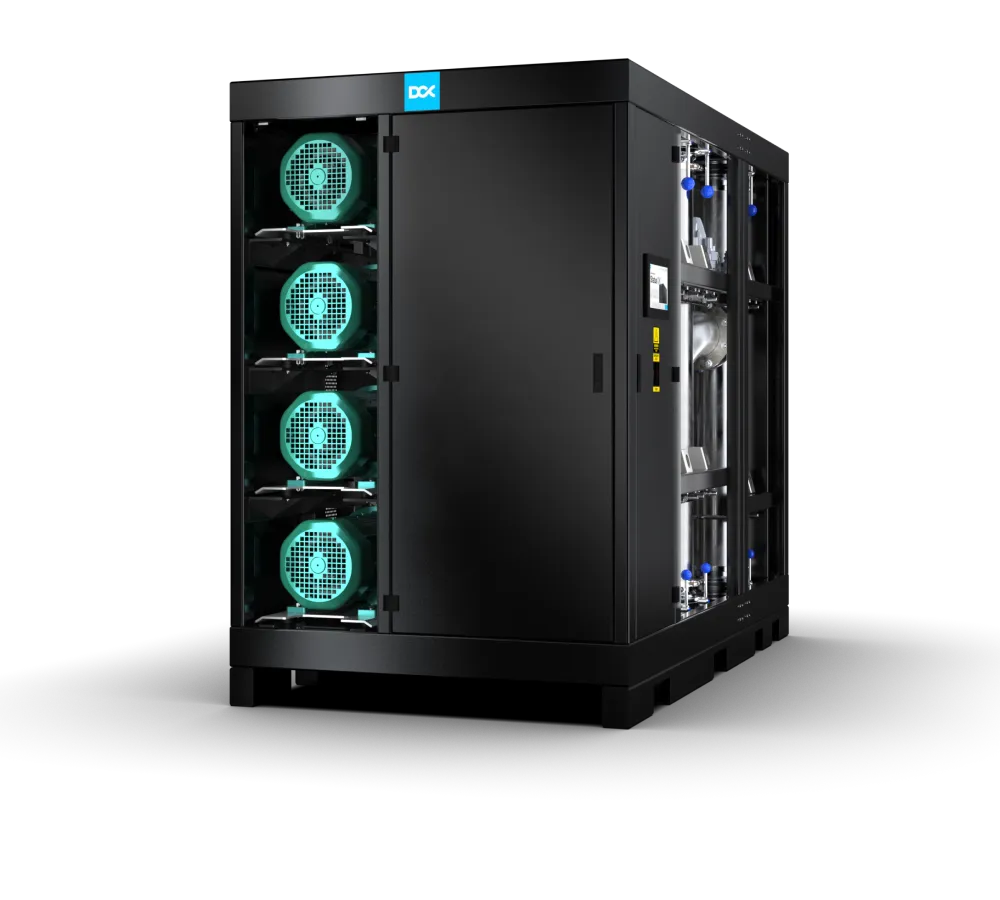

5 MW FDU
Hyperscale Coolant
Distribution Unit
5 MW in a single platform, with a 4°C approach
temperature. Voted Innovation Product of the Year at
Data Centre World London 2026.
5 MW Facility Coolant Distribution Unit
A facility-scale solution designed for high-density AI and hyperscale data centers.
5000 kW
Heat Transfer Capacity
4°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
95.3 (3+1 pumps, 3x31.8kW)
Power Consumption
3000 / 1500 / 2300 mm
Dimension (L / W / H)
5700 / 6500 kg
Transport /Filled Weight
Capacity
Up to 5 MW thermal capacity in a single unit, designed for scalable deployment in modular AI and HPC environments.
Performance
High-efficiency heat transfer with optimized flow distribution, ensuring stable operation under extreme loads.
Sustainability
Engineered for warm-water cooling, enabling heat reuse and significant reduction of facility energy consumption.
Power Density
Supports next-generation AI racks exceeding 100 kW+, with architecture ready for continuous density scaling.

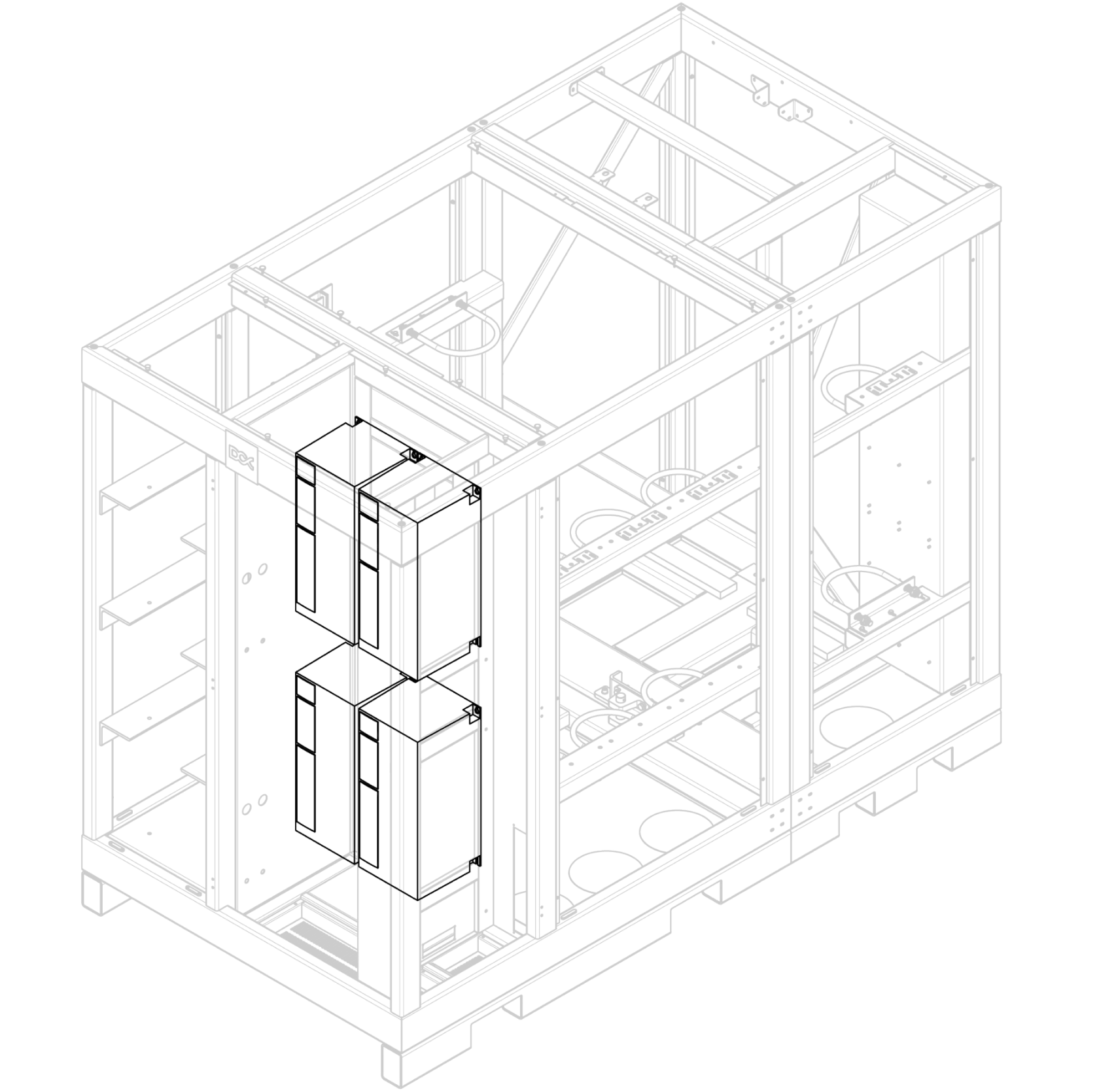

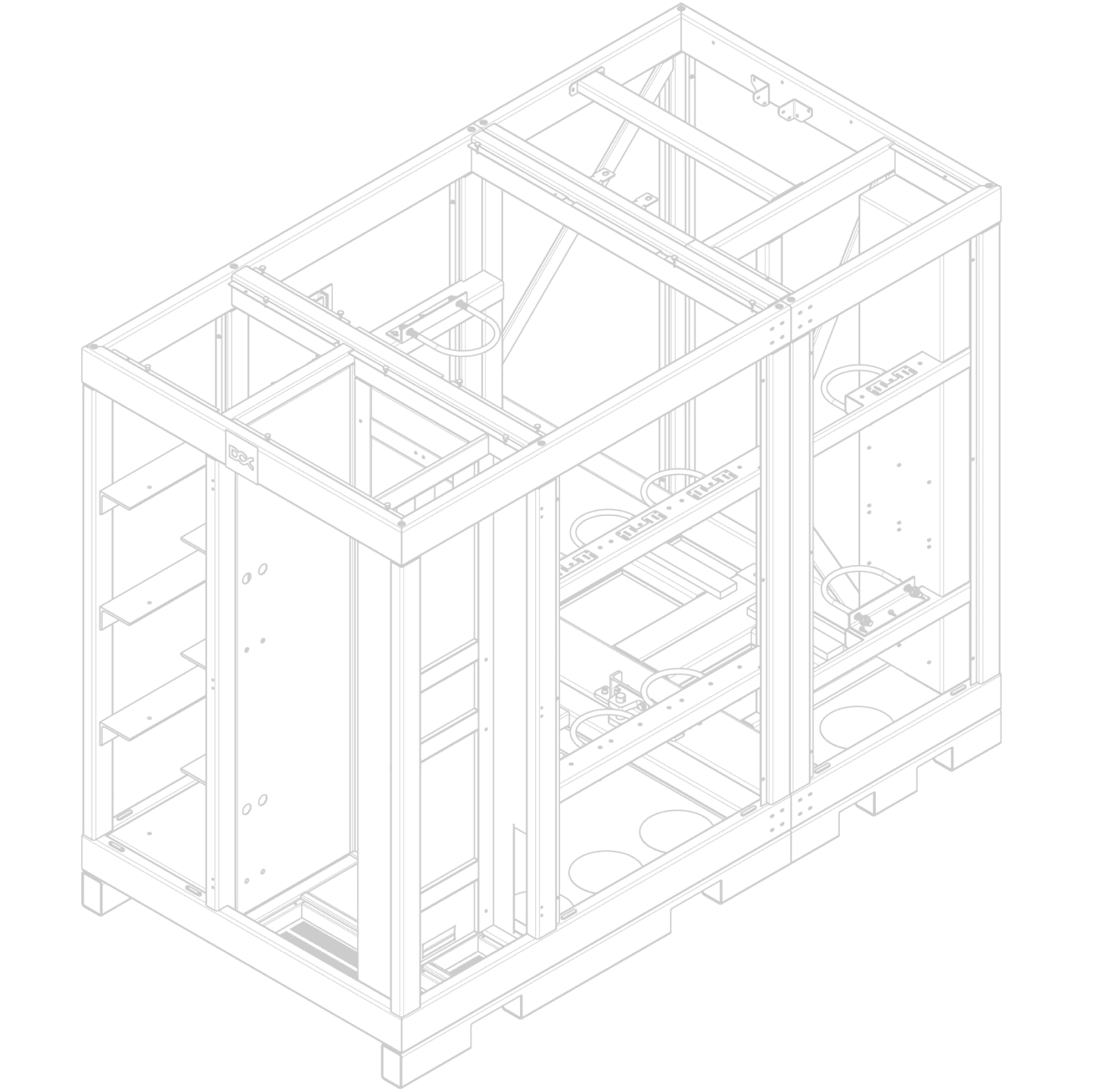

FDU Build Details

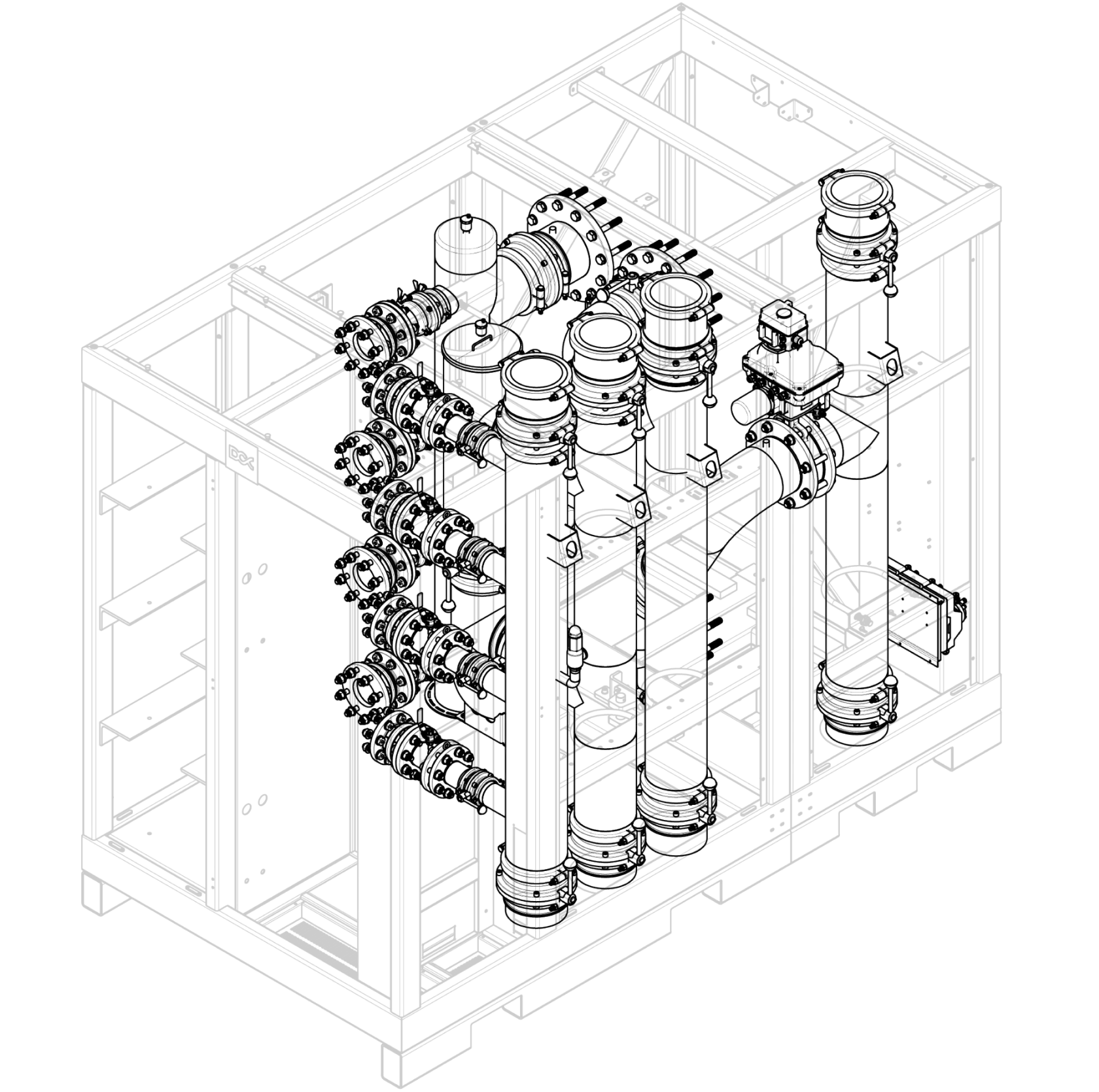

Dual Loop System
Dual-loop architecture optimizes hydraulic stability by reducing pressure on the TCS loop and protecting IT equipment from mechanical and thermal stress.
FDU Build Details

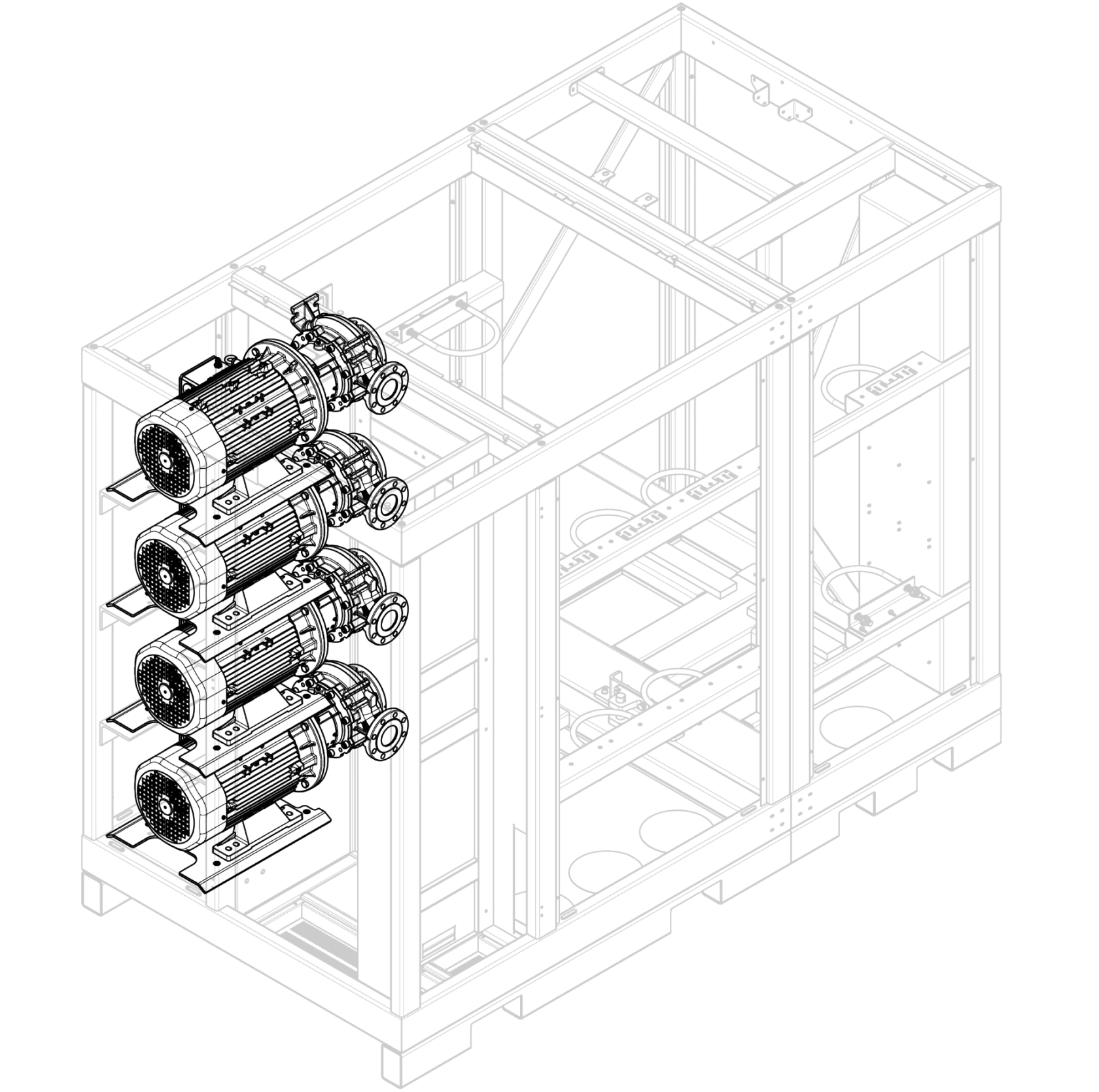

N+1 Redundant Pumps
N+1 redundant pump system with four high-capacity industrial pumps ensures continuous operation, delivering up to 10,000 L/min with all four pumps installed, while maintaining full system performance and redundancy.
FDU Build Details

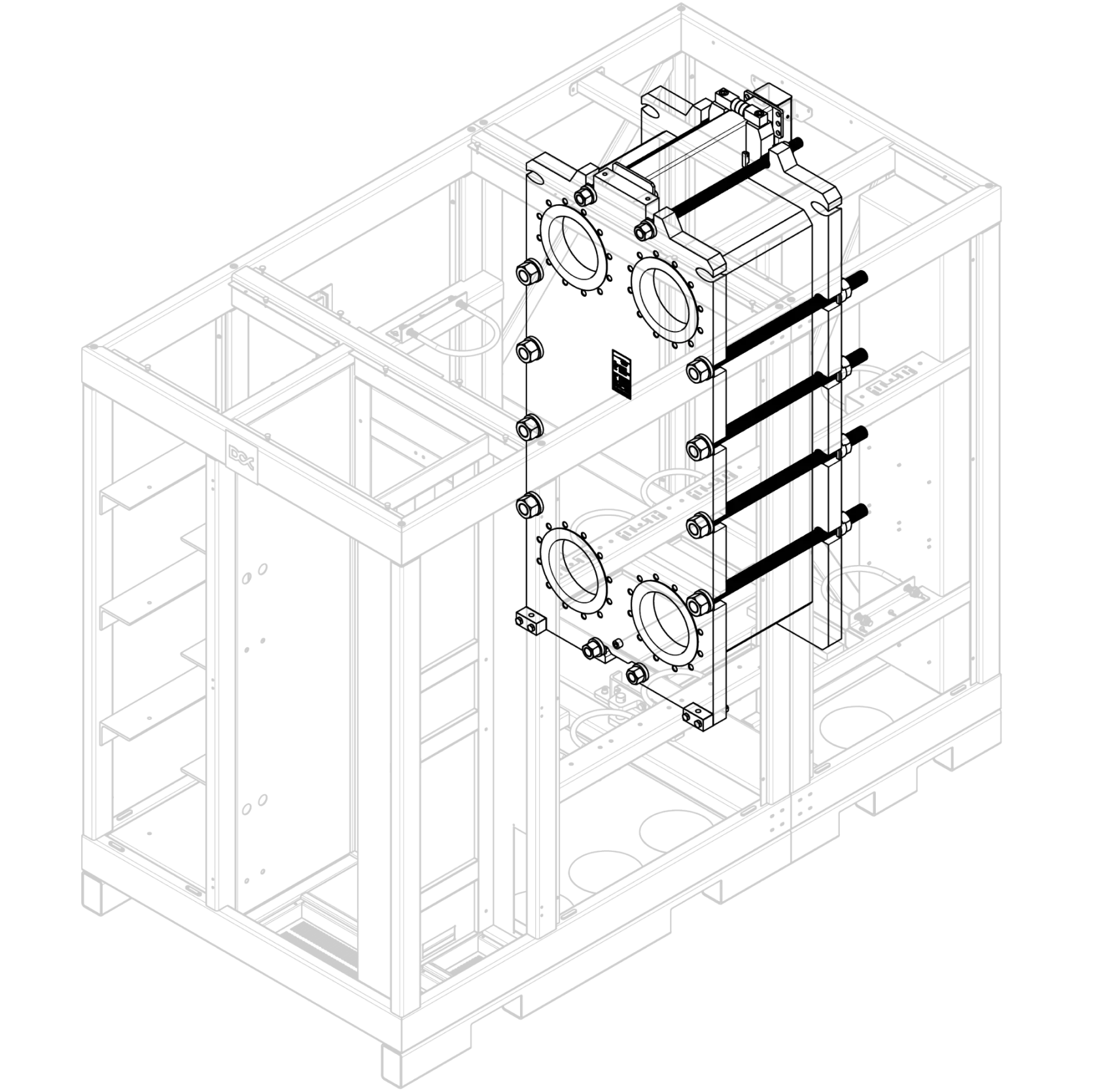

AT4-AT2 Heat Exchanger
Configurable heat exchanger capacity ranging from AT4 to AT2, integrated within a modular dual-frame design.
FDU Build Details

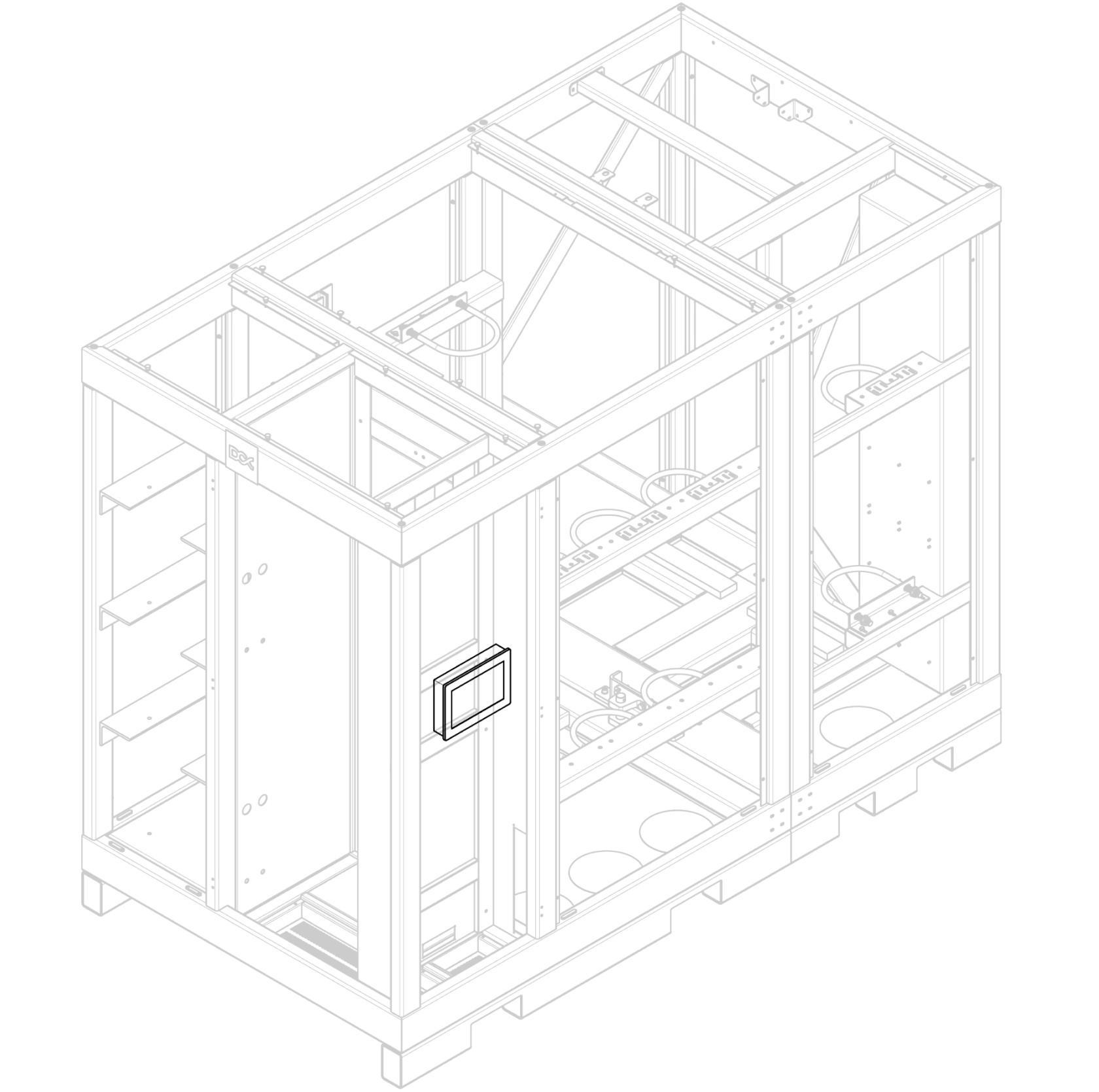

Smart VFDs
Smart VFD-driven pumps enabling predictive control, real-time monitoring, and energy optimization.
FDU Build Details
Adaptive Controls
Adaptive control logic and intelligent flow management for dynamic AI workloads.
Water Treatment System
New CDU, now with a built-in water quality & coolant treatment system.
Flow, Pressure, Temperature & Equipment Status
Monitoring
Pumps, Valves, CDUs & Cooling Loops
Control
Historical Trends
& Performance Reporting
Analytics
Alarm Response & Equipment Sequencing
Automation
BACnet, Modbus, OPC UA, SNMP, PROFINET
Connectivity
Rack-Level to Facility-Wide Infrastructure
Deployment
System Overview
A centralized view of system status, coolant condition, notifications, and key operating parameters.
Water Quality Monitoring
Real-time visibility into pH, conductivity, turbidity, glycol concentration, corrosion rate, and coolant temperature.
System Status
Live monitoring of pressures, temperatures, flow rates, pumps, valves, and overall system performance.
Chemical Dosing
& Treatment
Direct control of chemical dosing, pH regulation, and coolant treatment parameters.

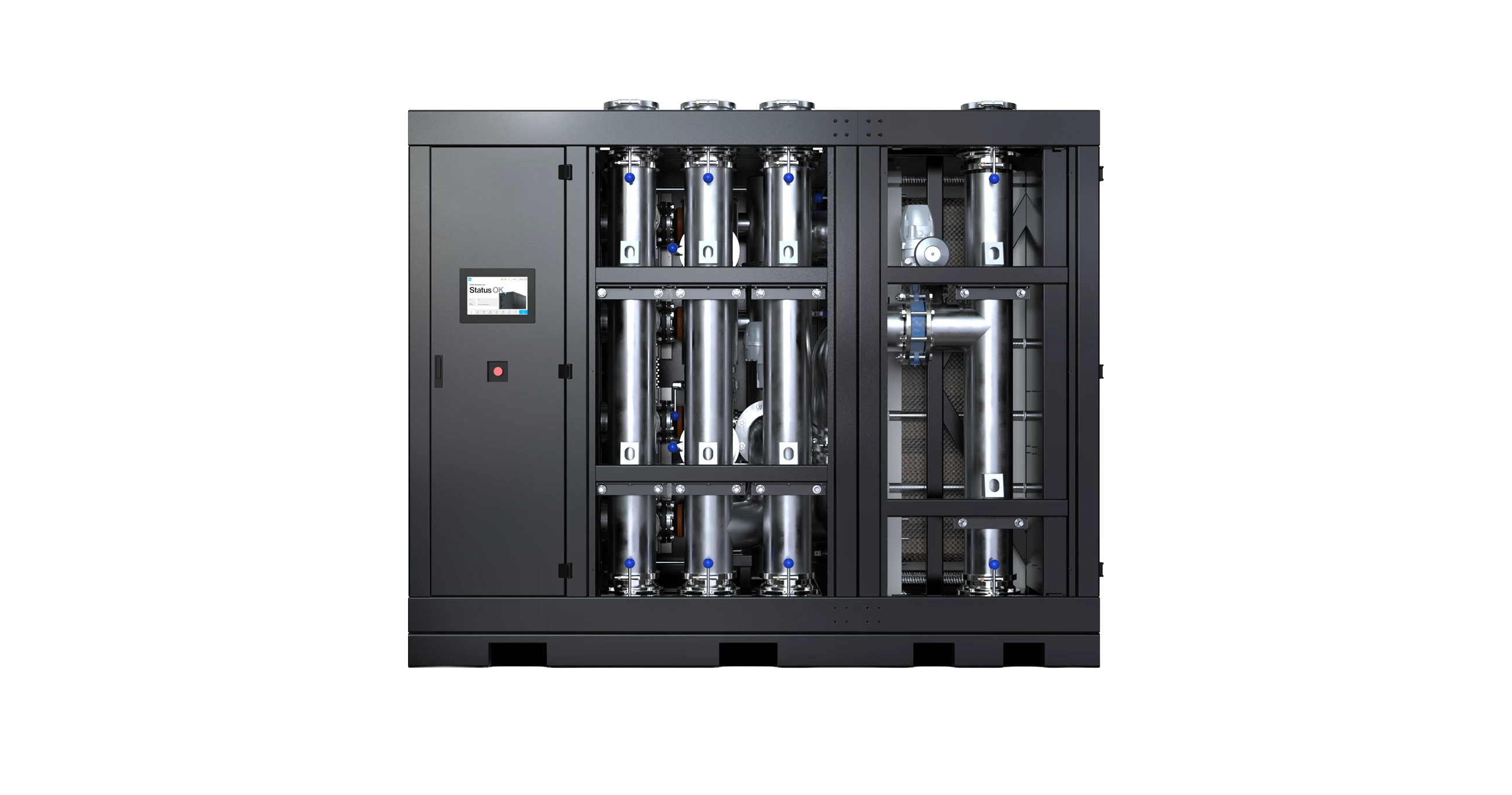

5 MW Facility Coolant Distribution Unit
Engineered for megawatt-scale AI and HPC environments, it integrates facility cooling into a single CDU platform designed for stable operation, precise control, and serviceability at scale.
5 MW
Heat Transfer Capacity
4°C
Approach temperature
100%
Recovered White Space
FDU Series
5 MW FDU
Engineered for complete data halls in hyper-scale data centers.
5000 kW
Heat Transfer Capacity
4°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
95.3 (3+1 pumps, 3x31.8kW)
Power Consumption
3000 / 1500 / 2300 mm
Dimension (L / W / H)
5700 / 6500 kg
Transport /Filled Weight
8 MW FDU
Designed for high-performance computing and GPU-intensive clusters.
8156 kW
Heat Transfer Capacity
2°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
95.3 (3+1 pumps, 3x31.8kW)
Power Consumption
4860 / 1800 / 2406 mm
Dimension (L / W / H)
9 877 / 12 037 kg
Transport /Filled Weight
