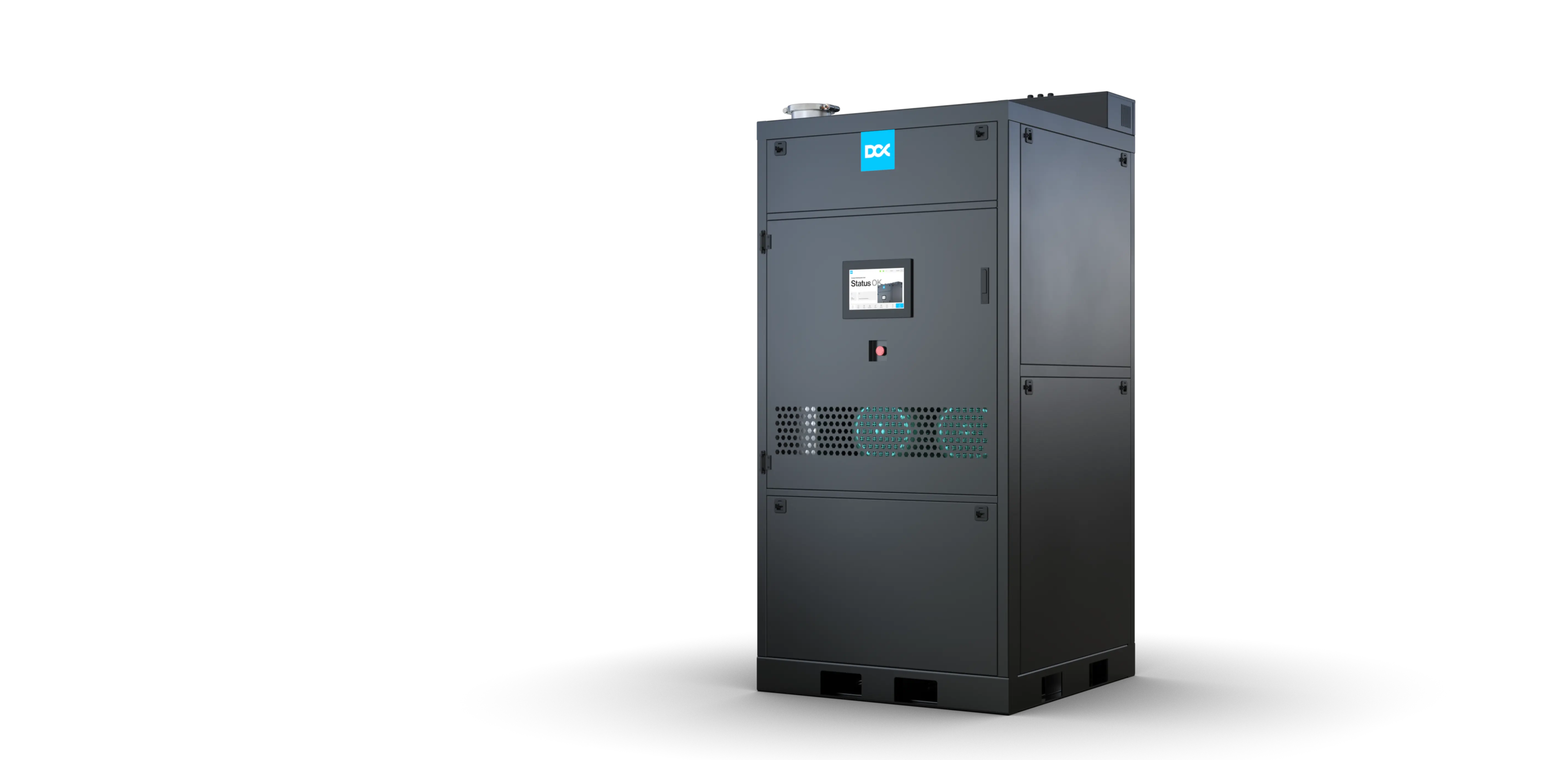

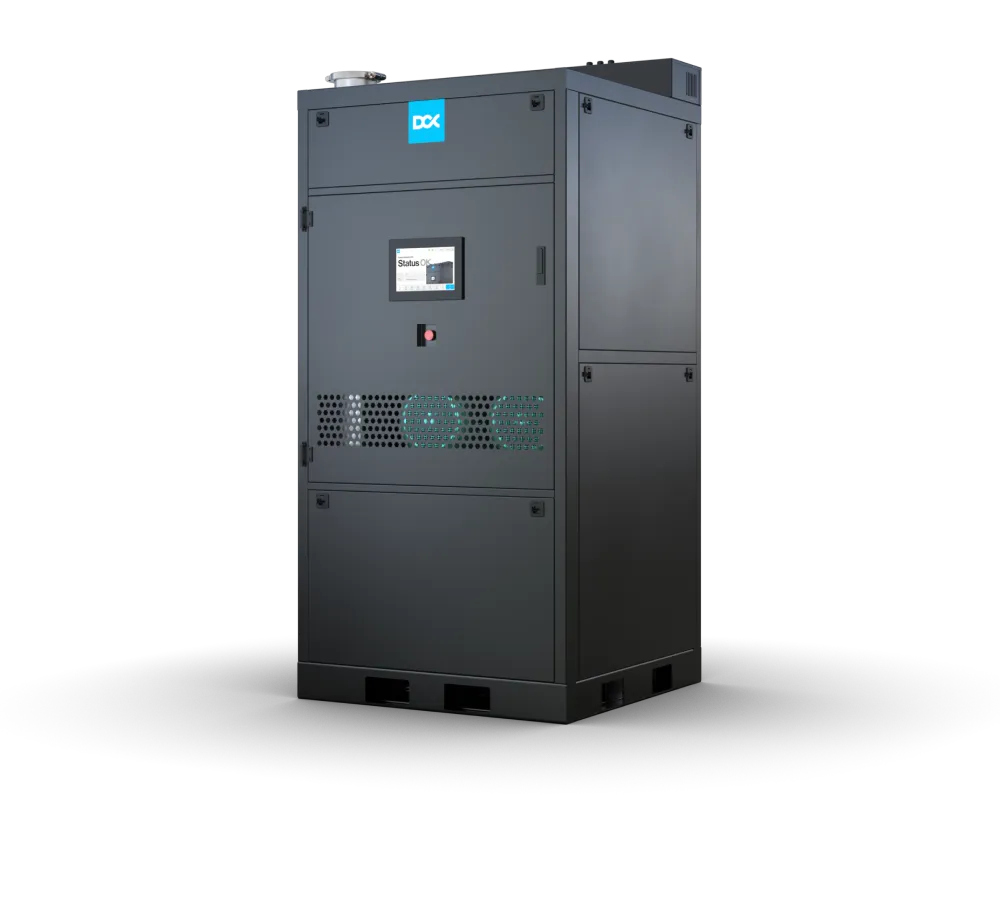

ECDU 1380/2600 H2
Mission Critical Coolant Distribution Unit
The Most Redundant CDU on the Market.
Mission Critical Coolant Distribution Unit 1380/2600
Defines new standard for the rack based high-capacity Coolant Distribution Units.
1380-2600 kW
Heat Transfer Capacity
3°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
27-31.5 kW (N+1 pumps)
Power Consumption
1200 / 1200 / 2400 mm
Dimension (L / W / H)
1280 / 1680 kg
Transport /Filled Weight
Capacity
1.38 MW-2.6 MW cooling with flexible deployment.
Performance
45°C ultra-efficient cooling with 3°C approach temperature.
Sustainability
3870 L/min flow with N+1 modular exchangers.
Power Density
Up to 45°C warm water cooling for high-density IT environments.
ECDU 1380/2600 H2 Bulid Details

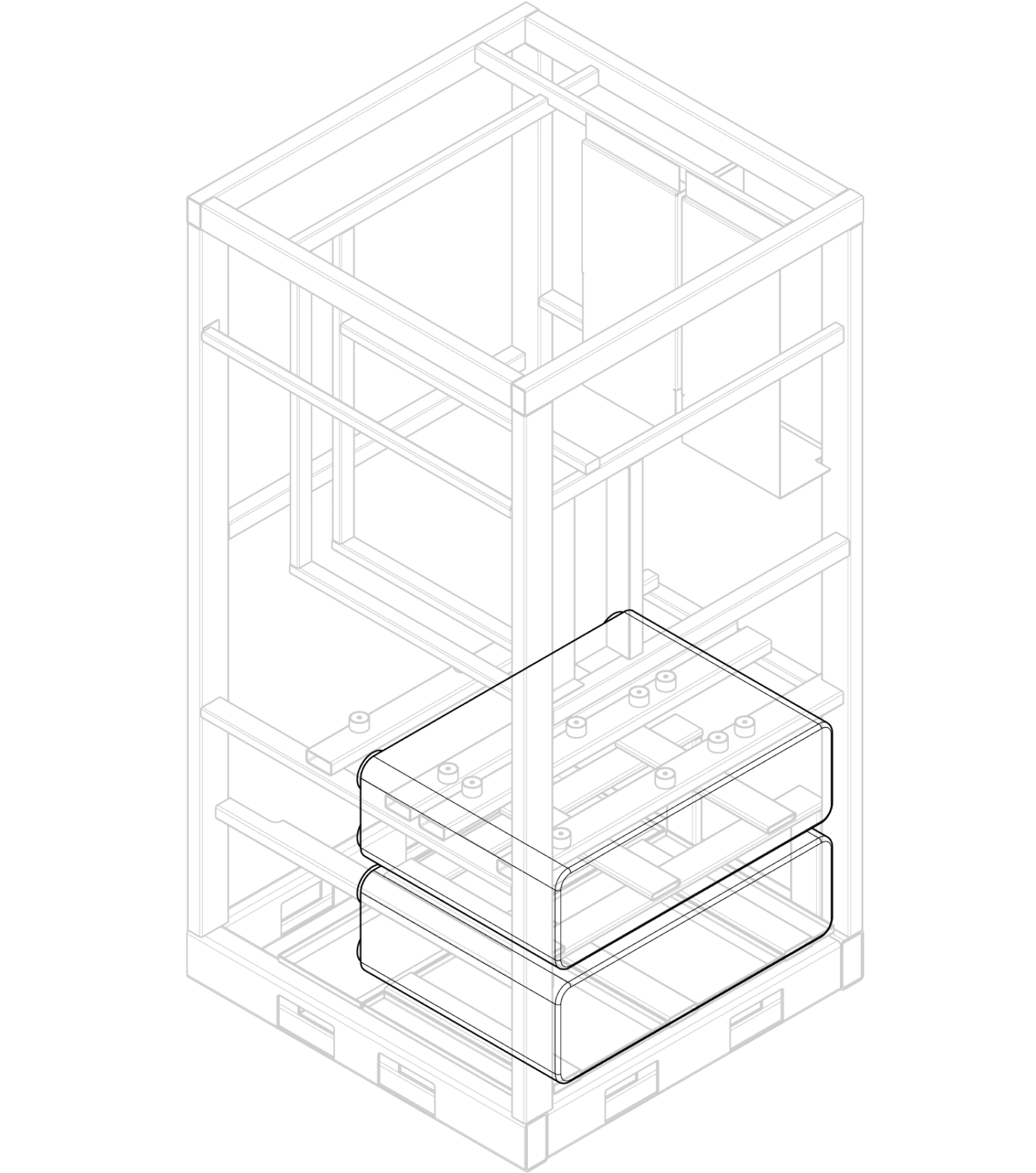

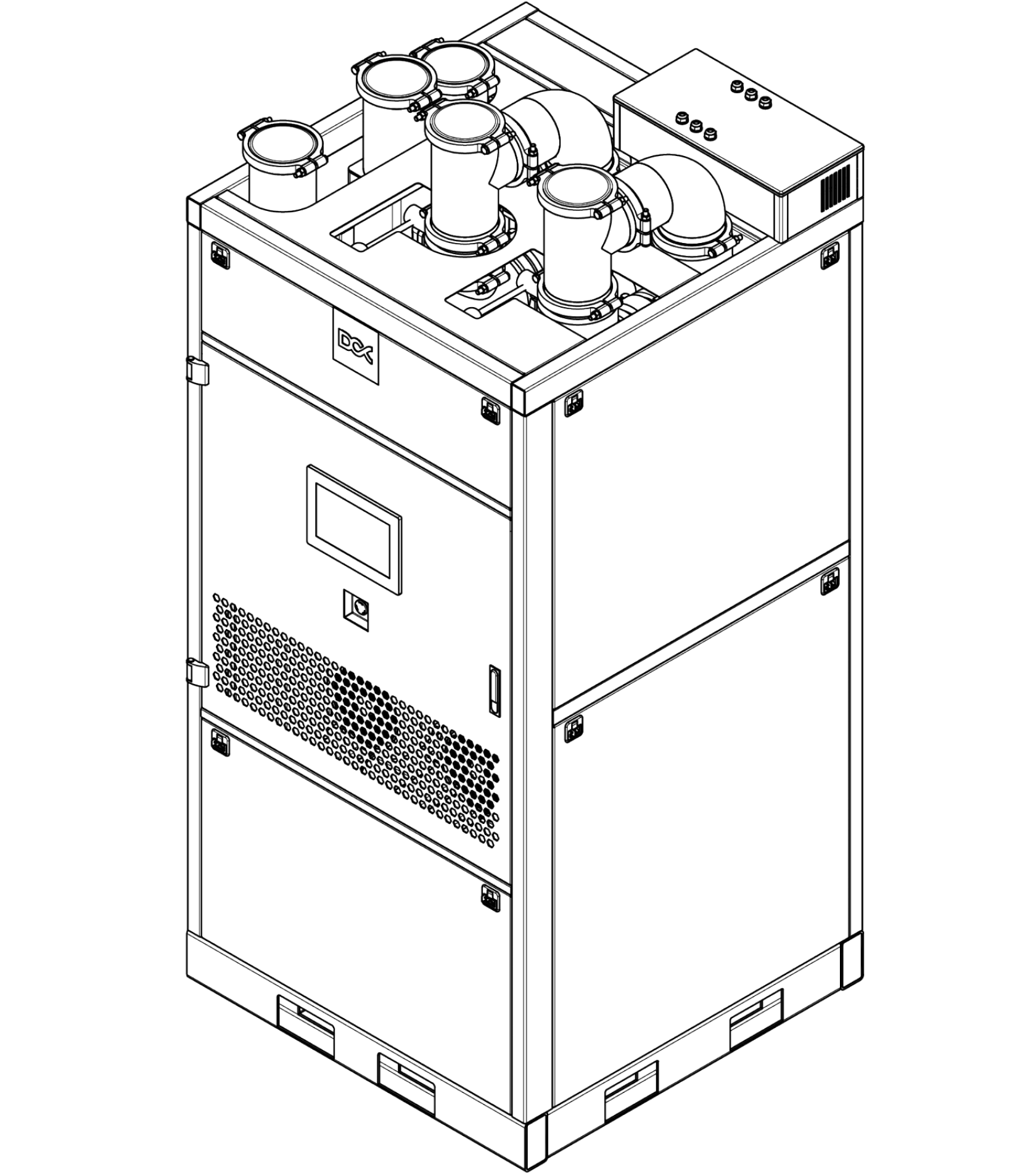

Industrial Enclosure
Optimised for both standard in-row or white space deployments and mechanical galleries, supporting single racks and complete rack groups.
ECDU 1380/2600 H2 Bulid Details

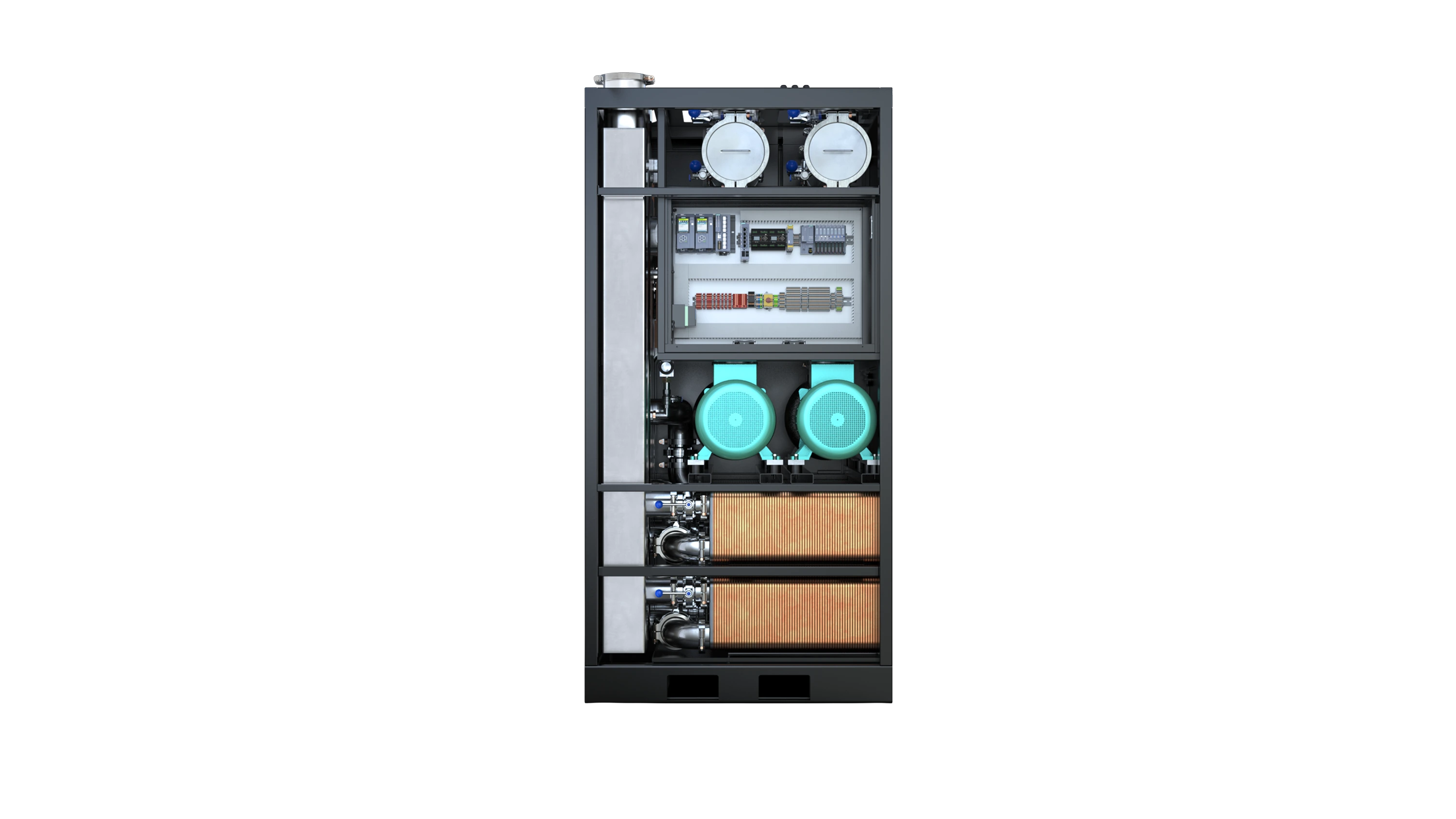

Integrated Heat Exchanger
Heat exchanger with AT3 (3°C approach temperature), improved from the common 7.2°F (4°C) standard.
ECDU 1380/2600 H2 Bulid Details

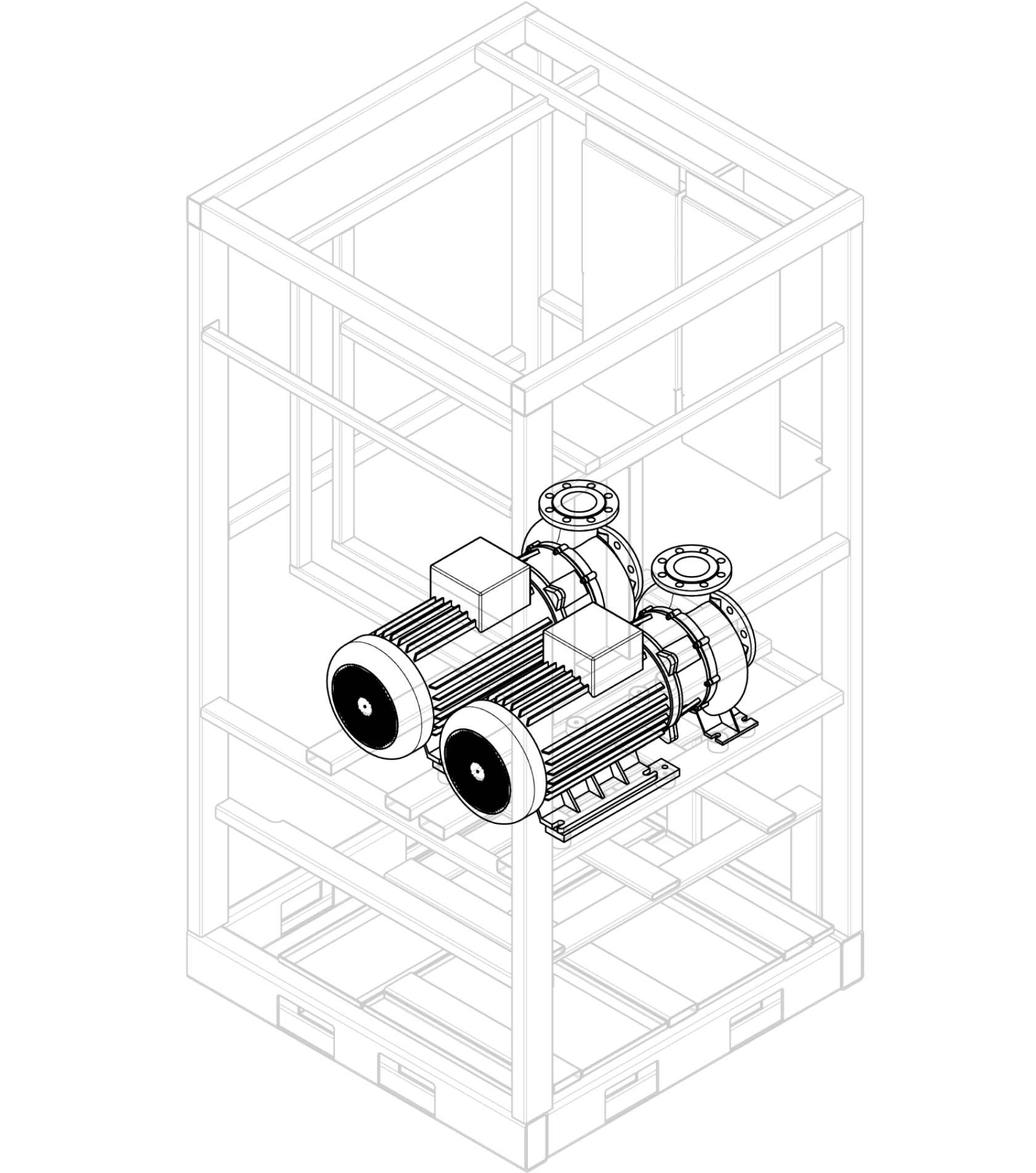

Full N+1 Redundancy
Fully redundant pumps, controllers, sensors, filters, and drives, providing true N+1 redundancy for maximum reliability.
ECDU 1380/2600 H2 Bulid Details

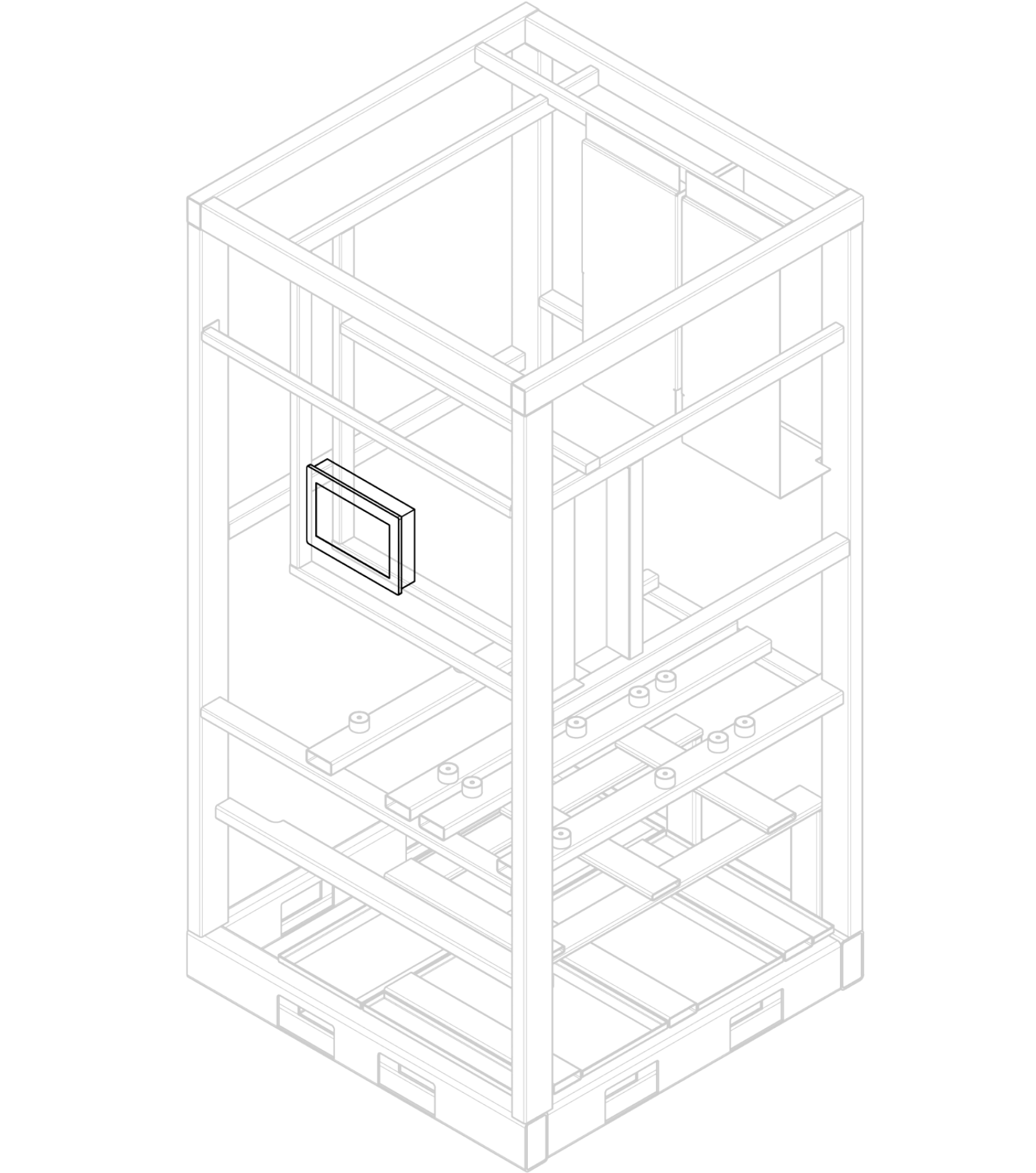

Coolant Monitoring
Advanced, integrated coolant monitoring ensures consistently high coolant quality and sustained thermal performance, eliminating the risk of degradation over time.
ECDU 1380/2600 H2 Bulid Details

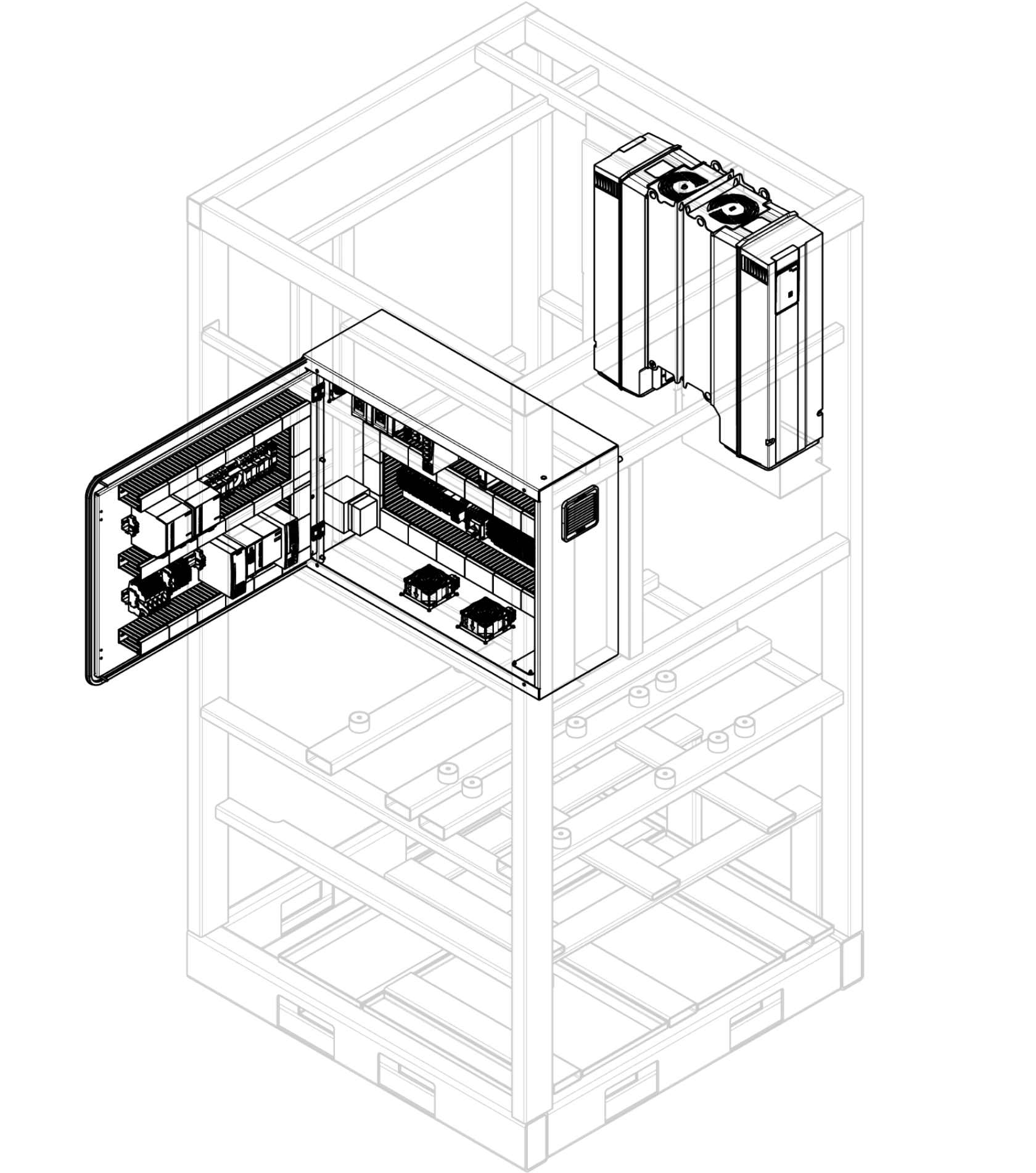

12" HMI Controller
A fully integrated 12-inch HMI provides intuitive local operation, remote system monitoring, and coordinated group control for optimized performance management.
ECDU 1380/2600 H2 Bulid Details

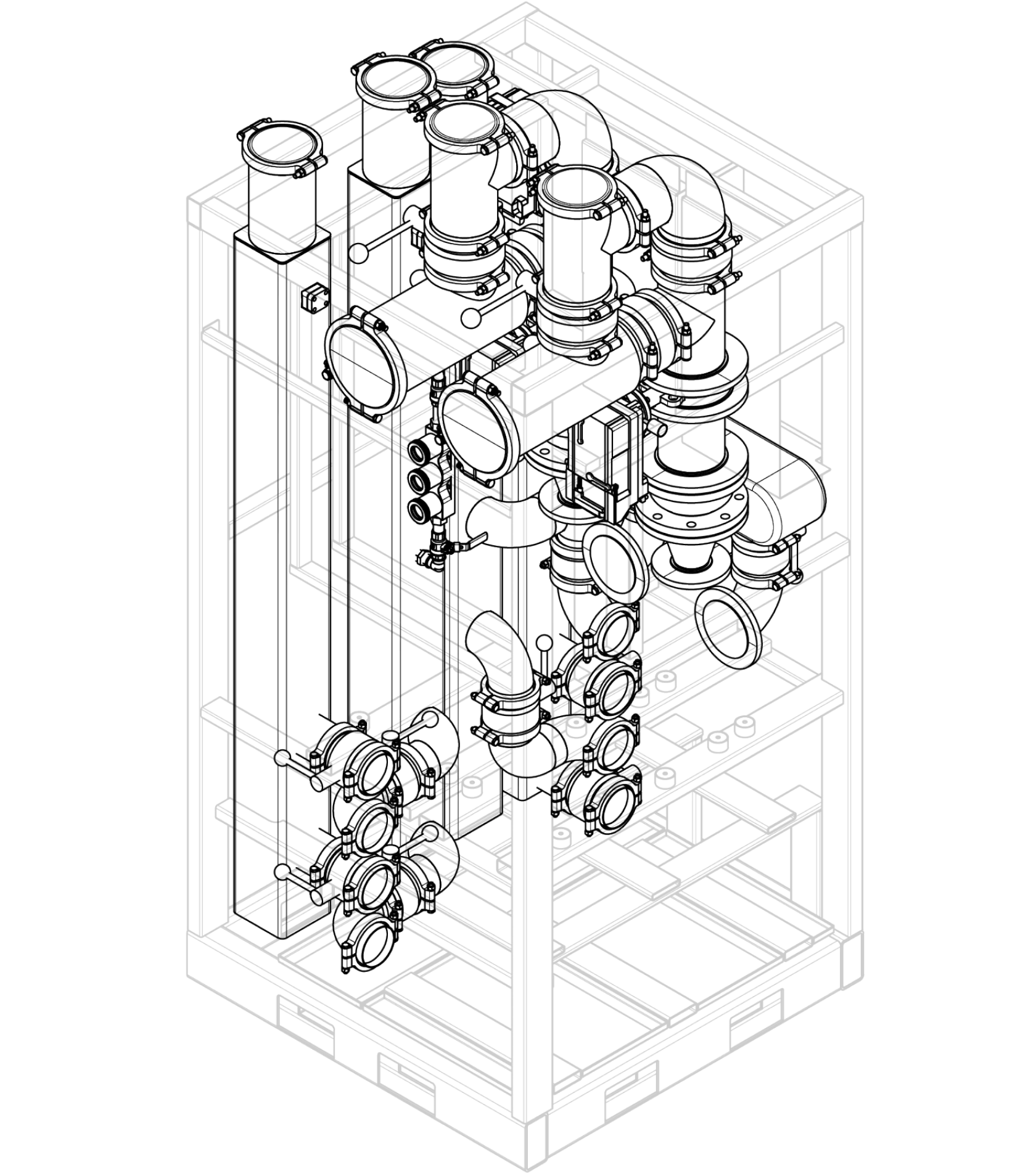

Flexible Hydraulic Connections
Top and technical-floor connections simplify installation in both new and retrofit deployments.
Water Treatment System
New CDU, now with a built-in water quality & coolant treatment system.
Flow, Pressure, Temperature & Equipment Status
Monitoring
Pumps, Valves, CDUs & Cooling Loops
Control
Historical Trends
& Performance Reporting
Analytics
Alarm Response & Equipment Sequencing
Automation
BACnet, Modbus, OPC UA, SNMP, PROFINET
Connectivity
Rack-Level to Facility-Wide Infrastructure
Deployment
System Overview
A centralized view of system status, coolant condition, notifications, and key operating parameters.
Water Quality Monitoring
Real-time visibility into pH, conductivity, turbidity, glycol concentration, corrosion rate, and coolant temperature.
System Status
Live monitoring of pressures, temperatures, flow rates, pumps, valves, and overall system performance.
Chemical Dosing
& Treatment
Direct control of chemical dosing, pH regulation, and coolant treatment parameters.
Mission Critical Coolant Distribution Unit 1380/2600
Engineered for enterprise, colocation, cloud, and hyperscale environments.
2.6 MW
Max Heat Transfer Capacity
3°C
Approach Temperature
3870 L/min
Max system flow rate
ECDU Series
ECDU 1380/2600
Engineered for enterprise-scale liquid cooling applications.
2600 kW
Max Heat Transfer Capacity
3°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
27-31.5 kW (N+1 pumps)
Power Consumption
1200 / 1200 / 2400 mm
Dimension (L / W / H)
1280 / 1680 kg
Transport /Filled Weight
ECDU 1380/2600 H2
Engineered for the most demanding AI and HPC environments.
2600 kW
Max Heat Transfer Capacity
3°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
27-31.5 kW (N+1 pumps)
Power Consumption
1200 / 1200 / 2400 mm
Dimension (L / W / H)
1280 / 1680 kg
Transport /Filled Weight
