8 MW FDU
The One To Cool Them All.
8.15 MW in a single platform, with a 2°C approach
temperature. Voted Innovation Product of the Year at
Data Centre World London 2026.

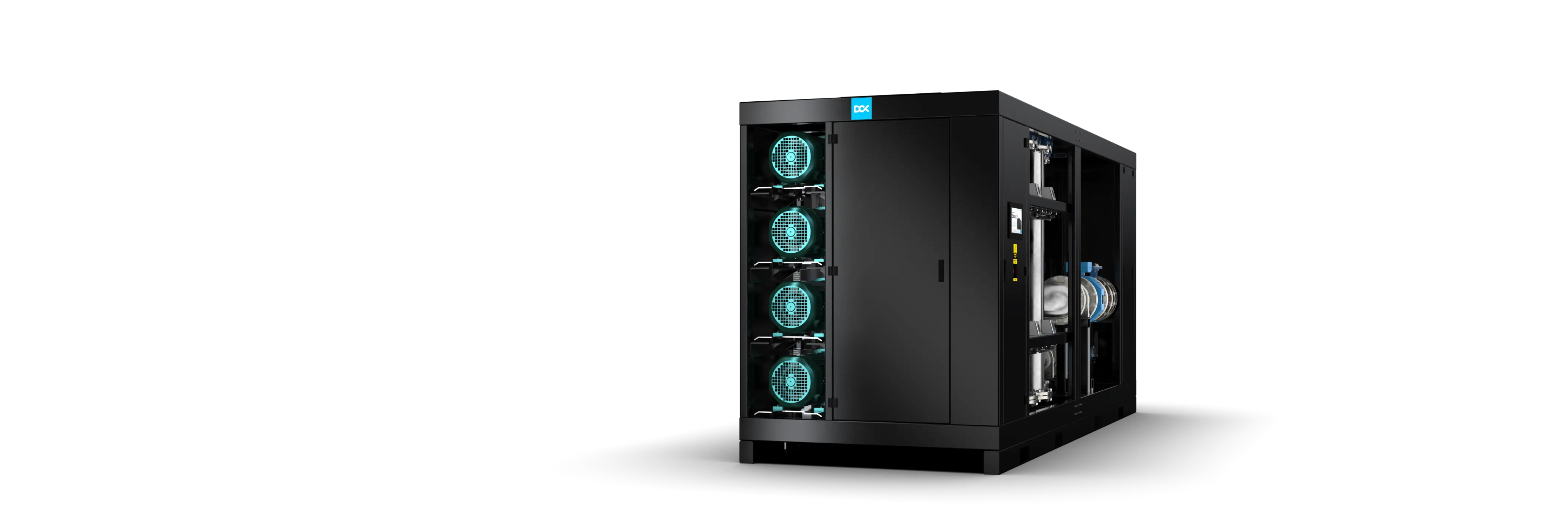

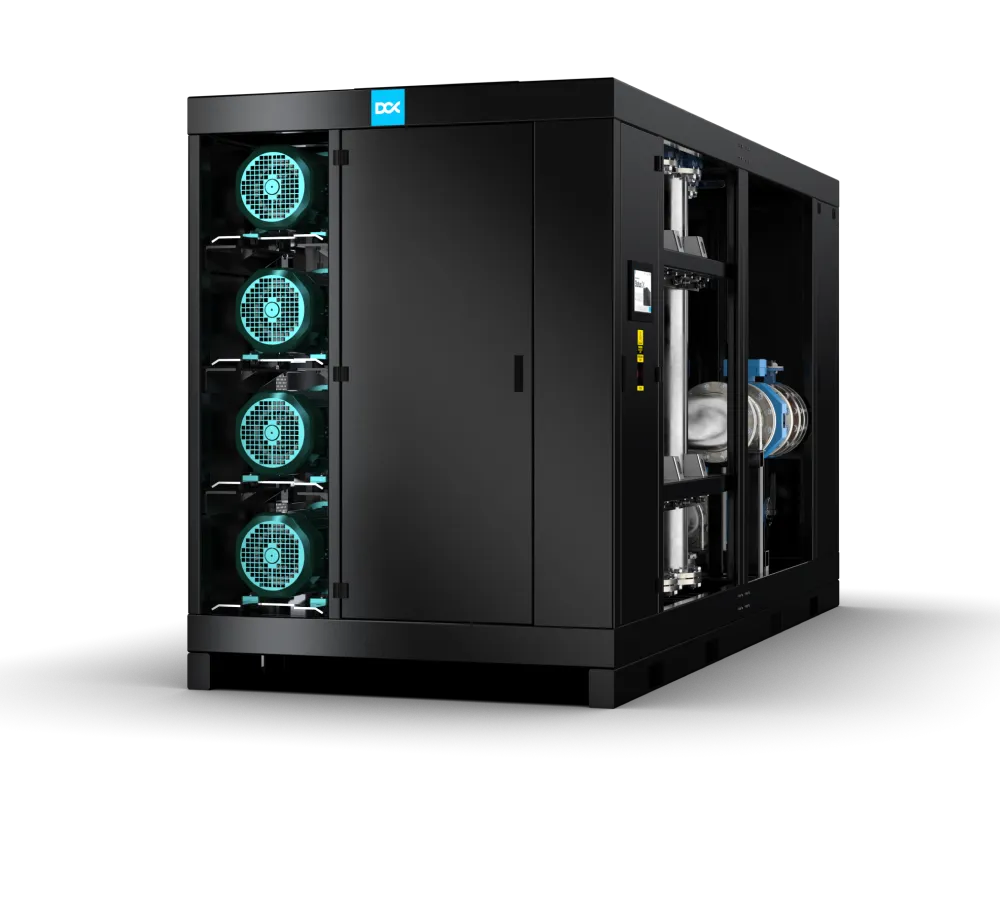

8 MW Facility Coolant Distribution Unit
A facility-scale solution designed for high-density AI and hyperscale data centers.
8156 kW
Heat Transfer Capacity
2°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
95.3 (3+1 pumps, 3x31.8kW)
Power Consumption
4860 / 1800 / 2406 mm
Dimension (L / W / H)
9 877 / 12 037 kg
Transport /Filled Weight
Capacity
Up to 8.15 MW cooling capacity in a single unit, designed for scalable deployment in modular AI and HPC environments.
Performance
High-efficiency heat transfer with optimized flow distribution, ensuring stable operation under extreme loads.
Sustainability
Engineered for warm-water cooling, enabling heat reuse and significant reduction of facility energy consumption.
Power Density
Supports next-generation AI racks exceeding 100 kW+, with architecture ready for continuous density scaling.

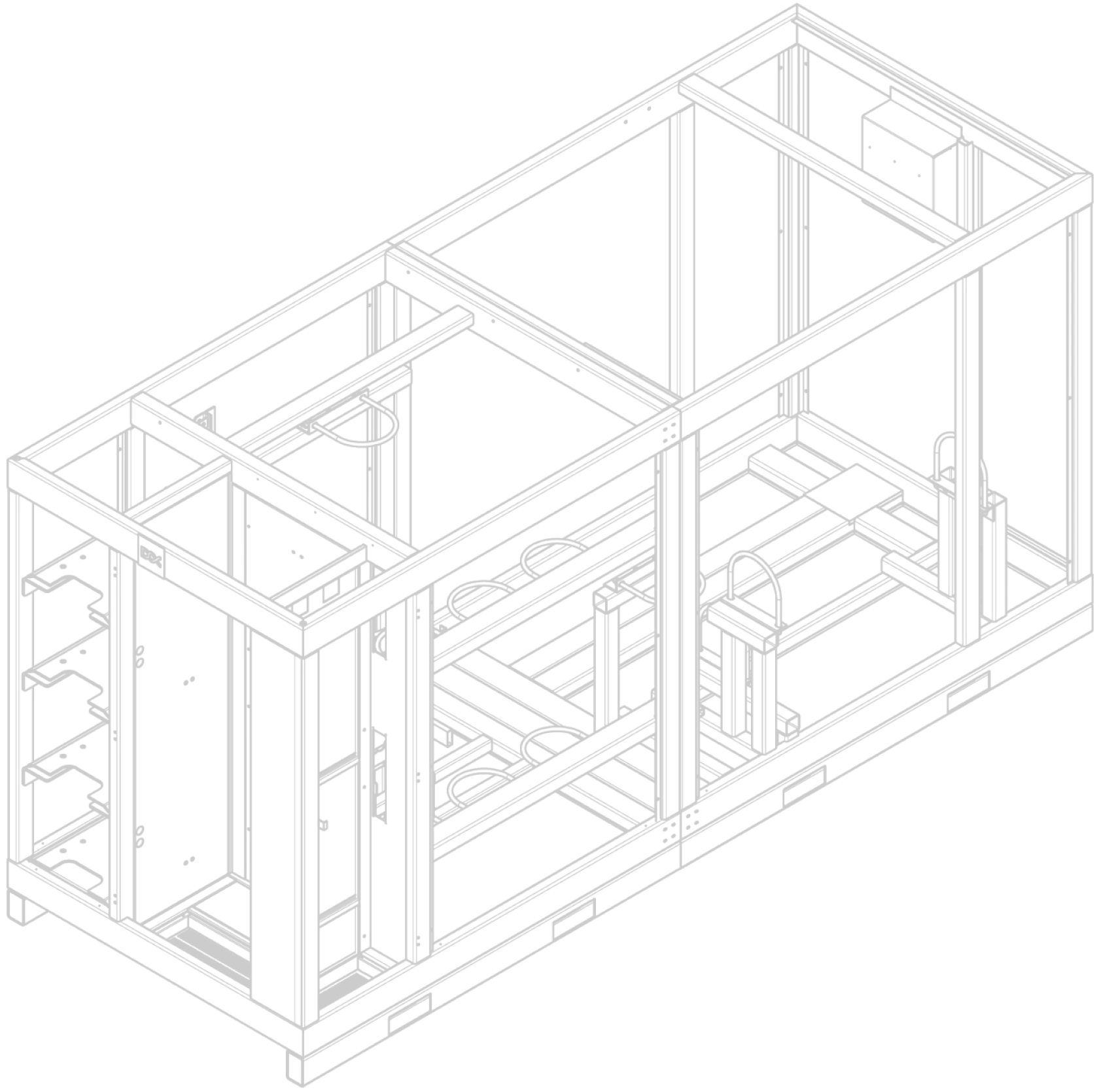

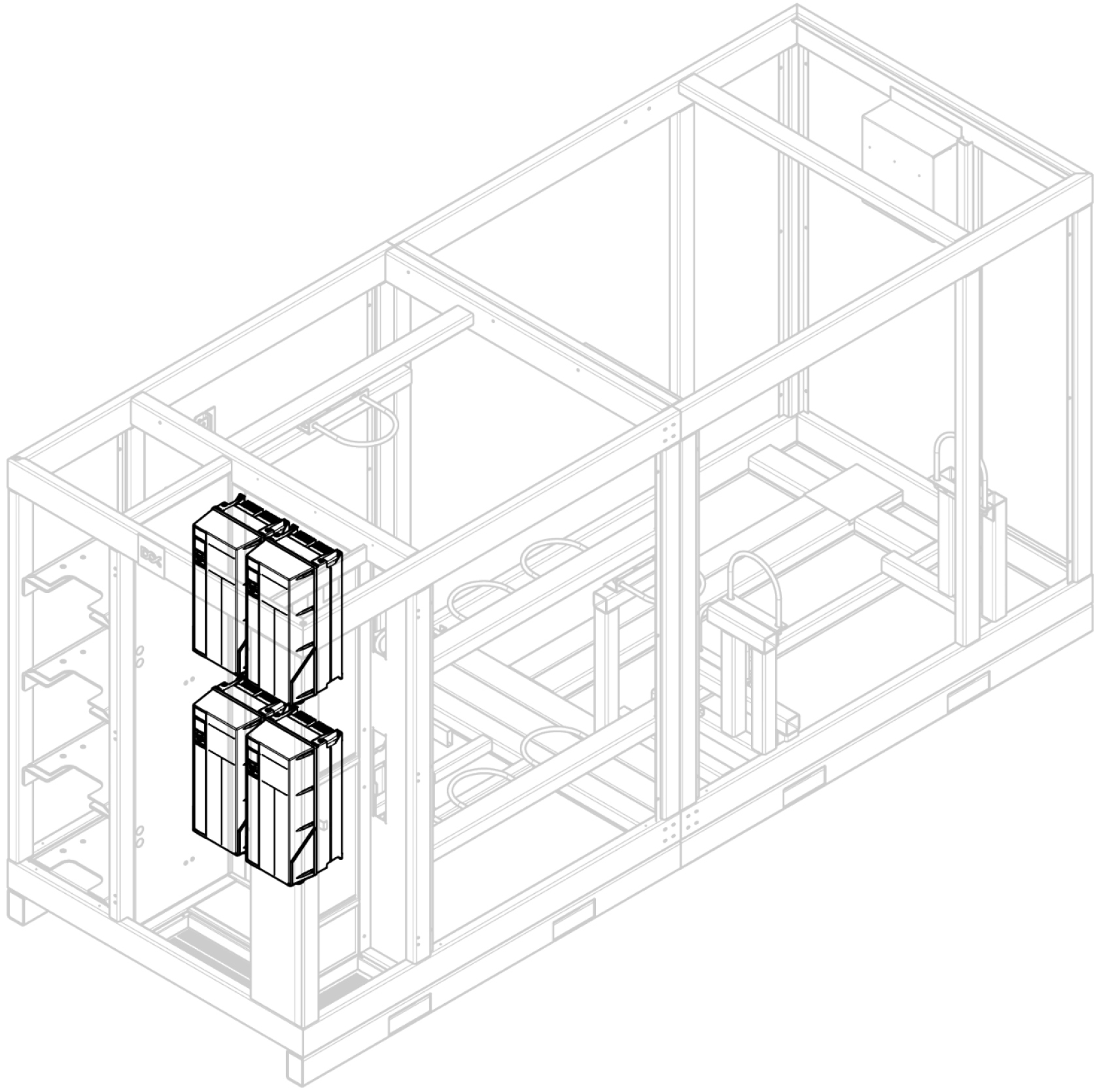

FDU Build Details

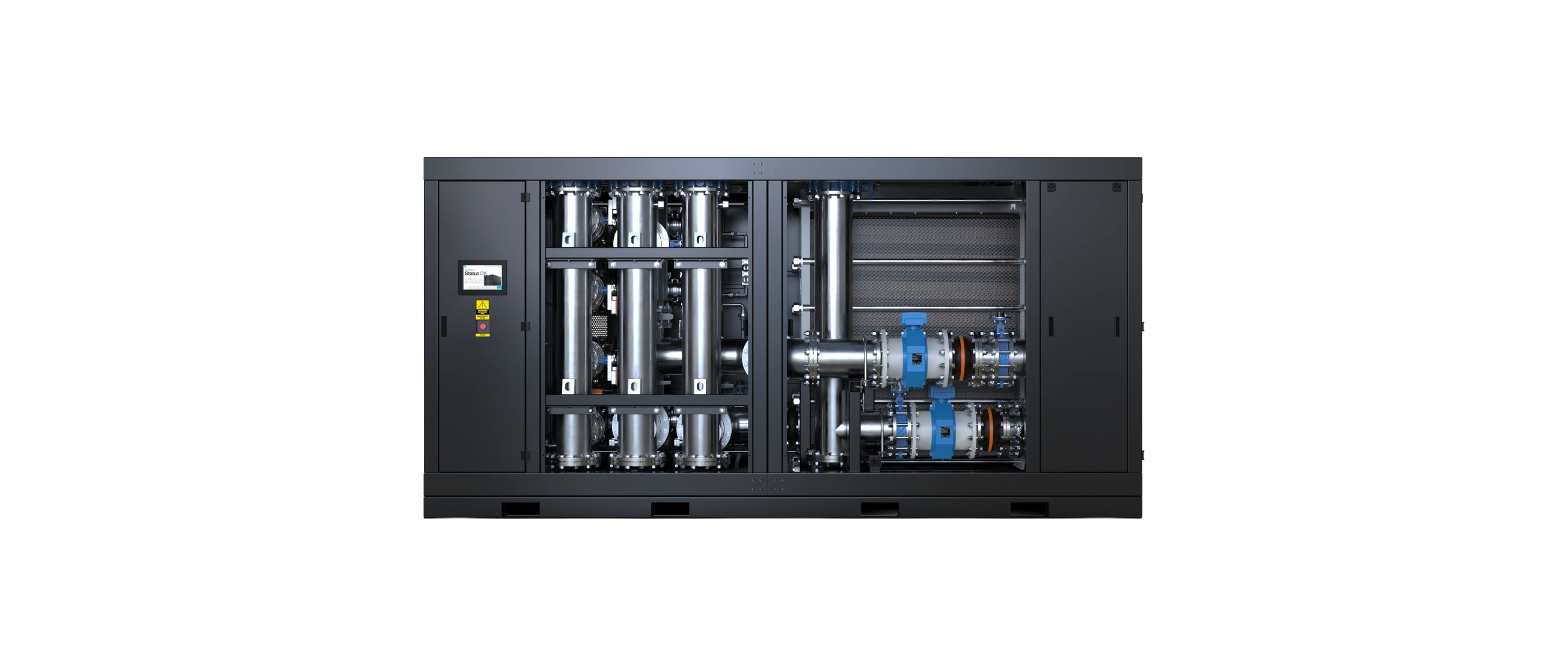

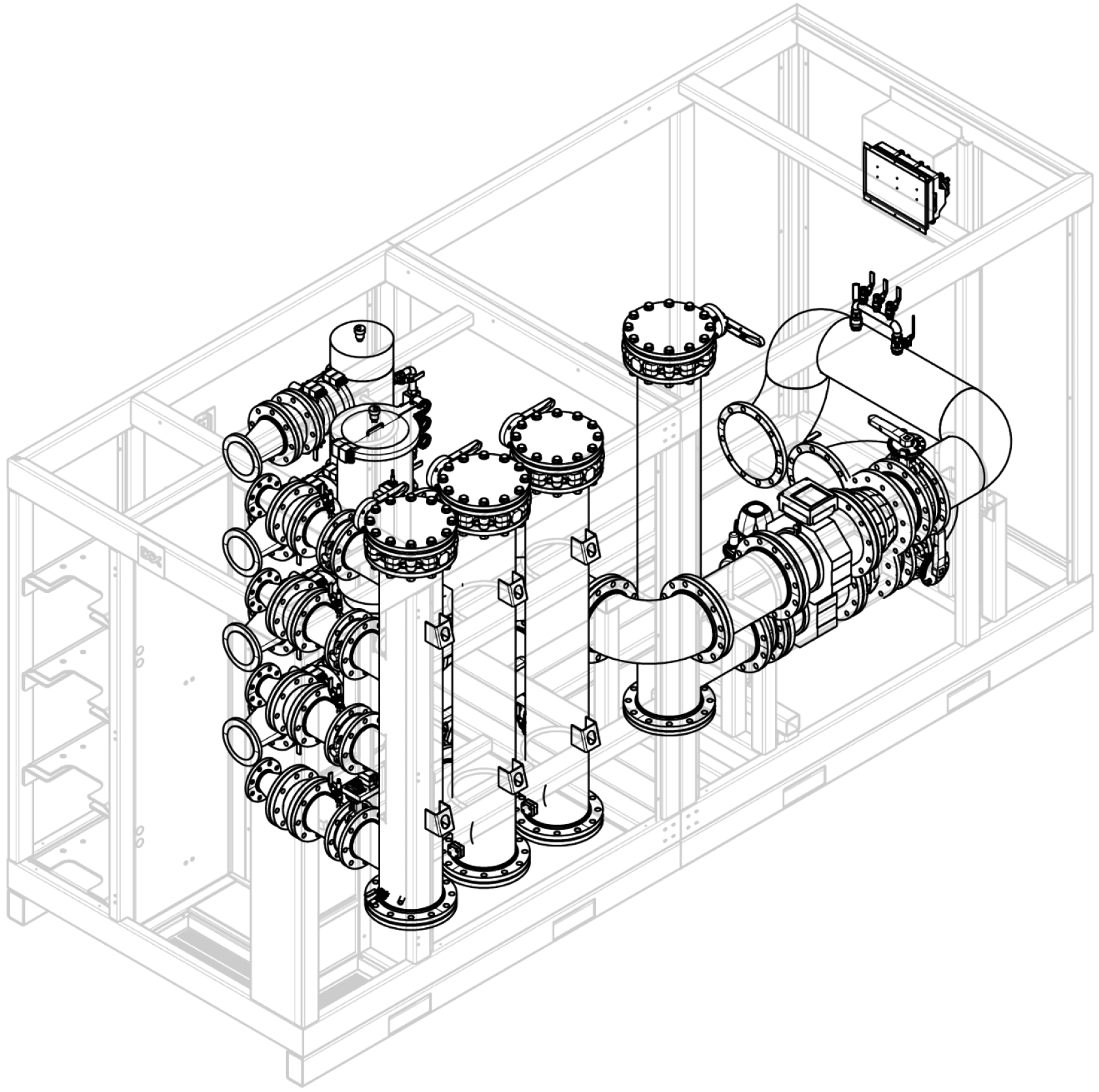

Dual Loop System
Dual-loop architecture enables efficient heat transfer between the facility and secondary cooling loops.
FDU Build Details

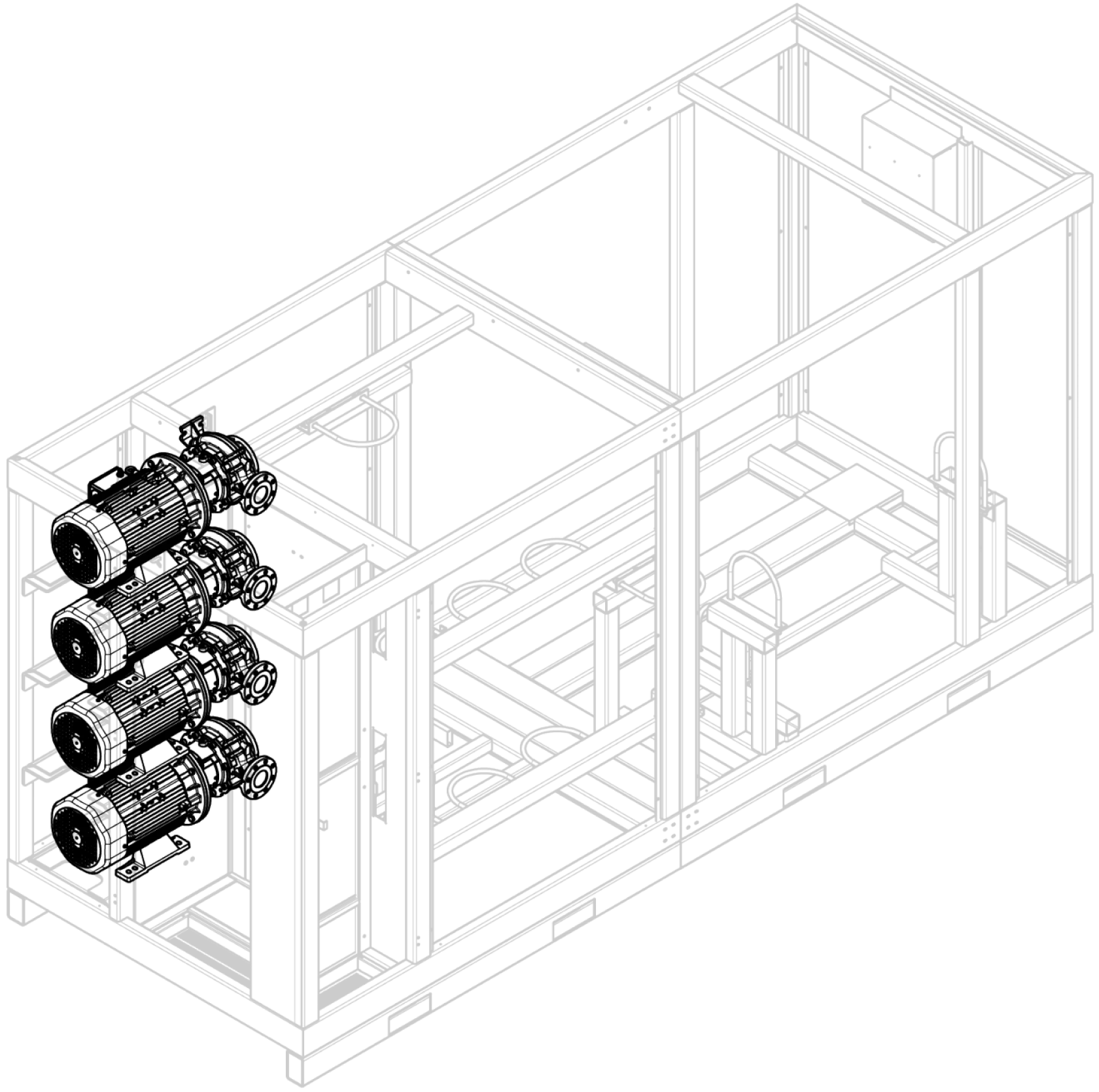

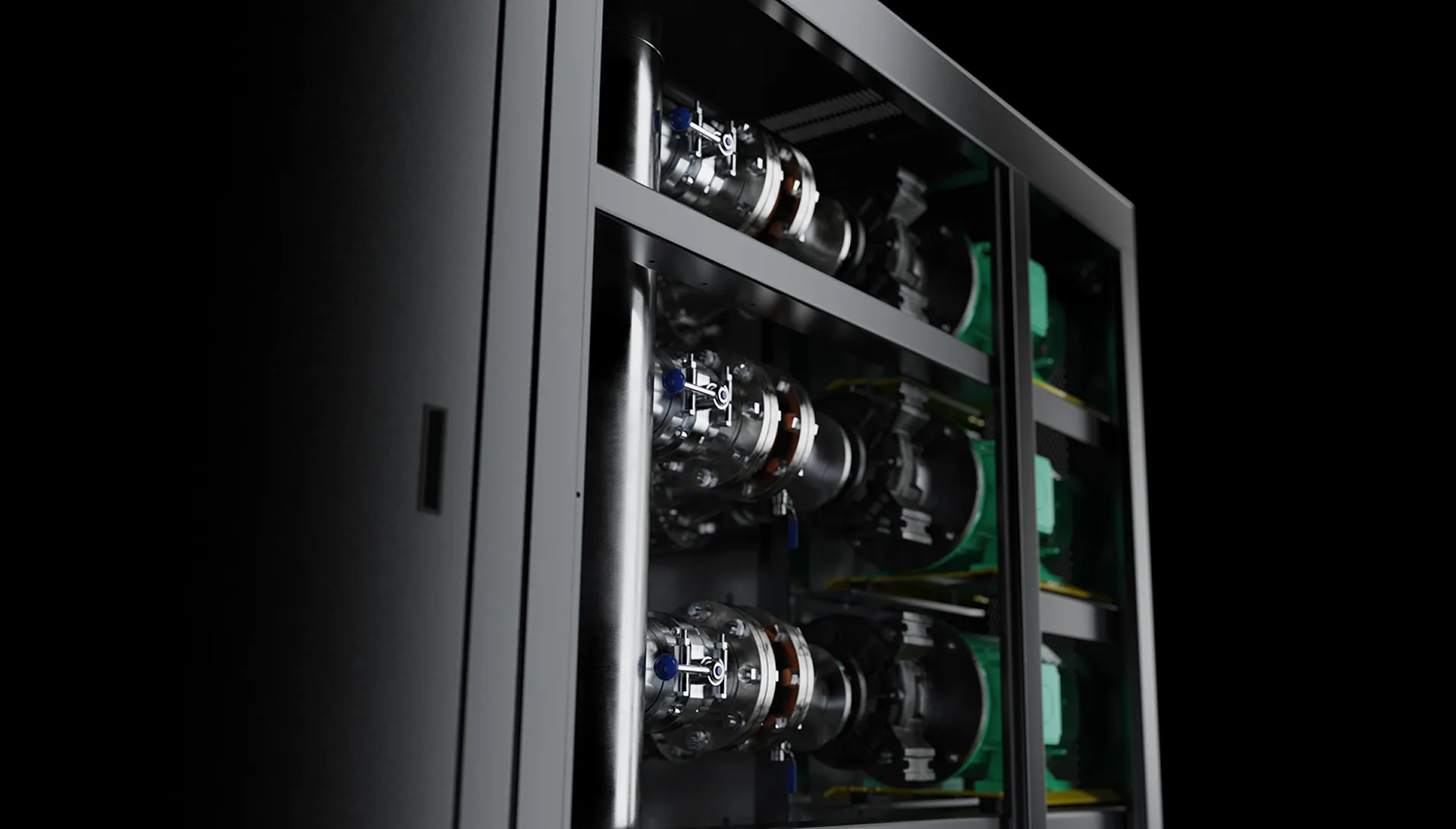

N+1 Redundant Pumps
Ensures stable operation across complex and extended cooling loop architectures through N+1 redundancy with 4 pumps and high head pressure.
FDU Build Details

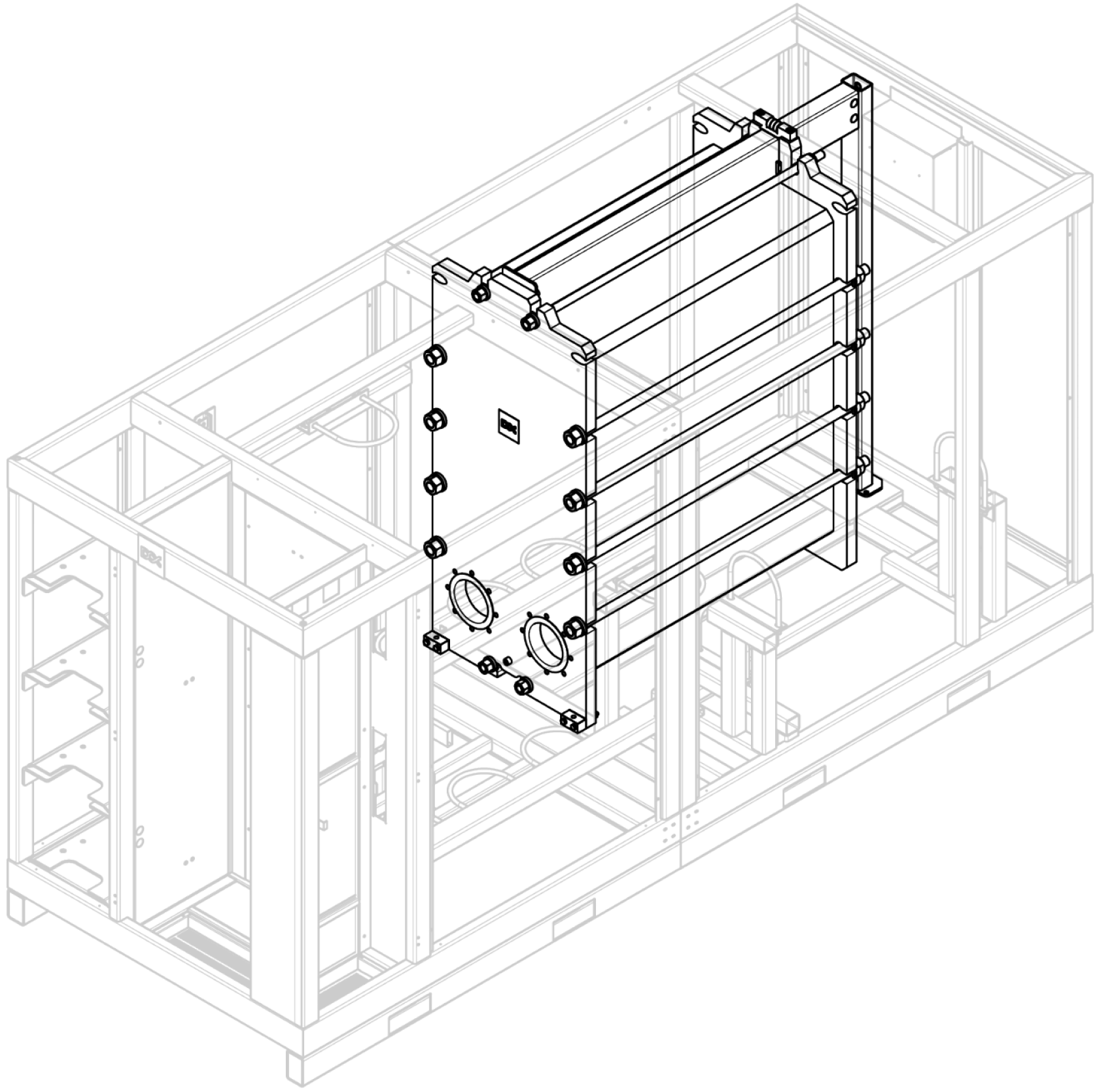

AT2 Heat Exchanger
Achieves a 2°C approach temperature, maximizing heat transfer efficiency and enabling warm-water operation.
FDU Build Details
Smart VFDs
Smart VFD-driven pumps enabling predictive control, real-time monitoring, and energy optimization.
FDU Build Details

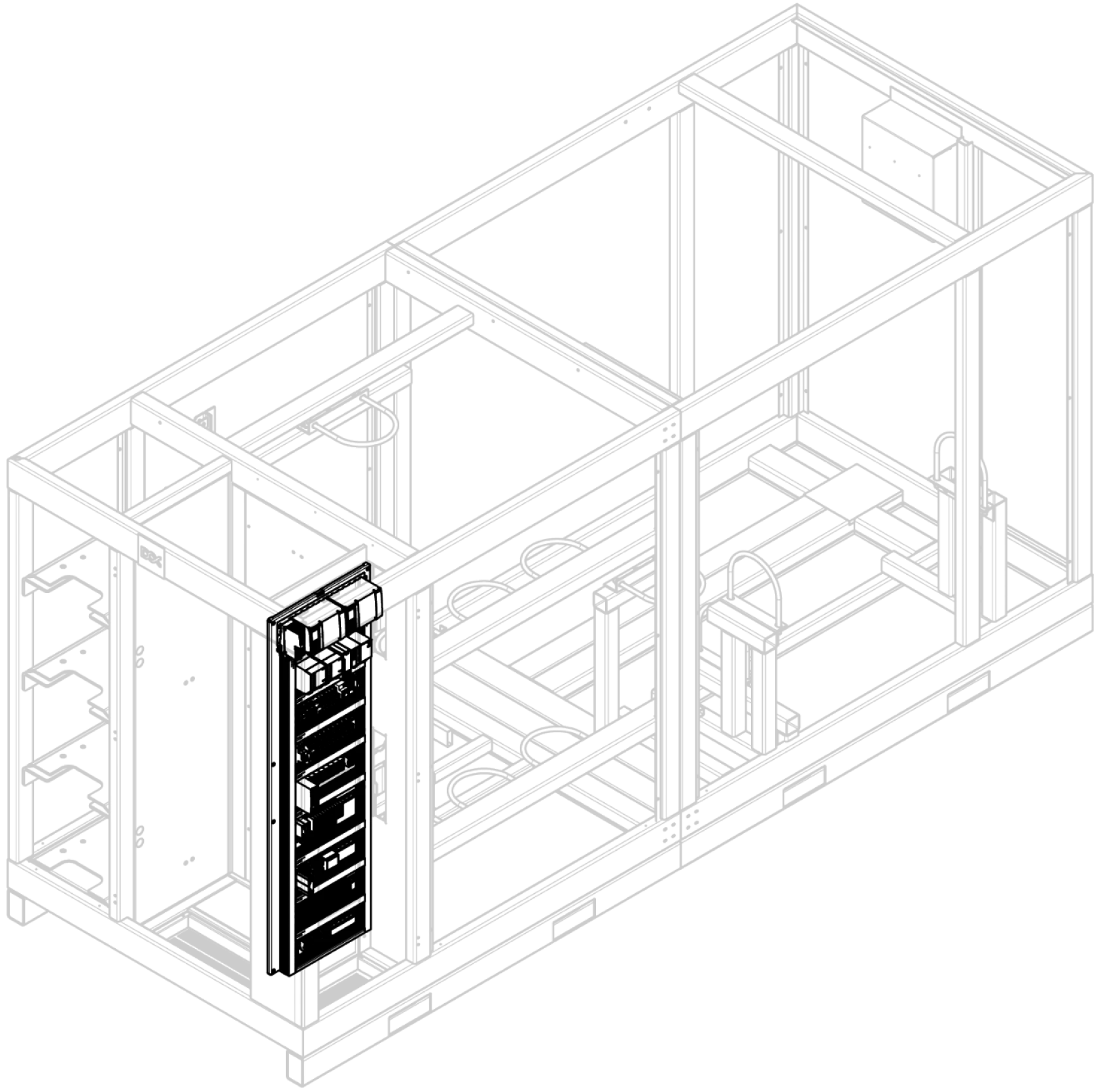

Integrated Monitoring
Includes automated condensation management, leak detection, coolant level control, and remote monitoring for full system visibility.
FDU Build Details
Water Quality System
Integrated water quality monitoring and coolant treatment help maintain fluid cleanliness, protect system components, and support reliable long-term operation.
FDU Build Details
12" HMI Controller
An integrated 12-inch touchscreen enables intuitive local operation, real-time system monitoring, and coordinated control of cooling equipment.
Water Treatment System
New CDU, now with a built-in water quality & coolant treatment system.
Flow, Pressure, Temperature & Equipment Status
Monitoring
Pumps, Valves, CDUs & Cooling Loops
Control
Historical Trends
& Performance Reporting
Analytics
Alarm Response & Equipment Sequencing
Automation
BACnet, Modbus, OPC UA, SNMP, PROFINET
Connectivity
Rack-Level to Facility-Wide Infrastructure
Deployment
System Overview
A centralized view of system status, coolant condition, notifications, and key operating parameters.
Water Quality Monitoring
Real-time visibility into pH, conductivity, turbidity, glycol concentration, corrosion rate, and coolant temperature.
System Status
Live monitoring of pressures, temperatures, flow rates, pumps, valves, and overall system performance.
Chemical Dosing
& Treatment
Direct control of chemical dosing, pH regulation, and coolant treatment parameters.
8 MW Facility Coolant Distribution Unit
Engineered for top-tier AI and Hyperscale data center performance, delivering high cooling efficiency and scalable liquid cooling architecture for next-generation compute environments.
8 MW
Heat Transfer Capacity
4X
Higher Capacity than CDUs
100%
Recovered White Space
FDU Series
5 MW FDU
Engineered for complete data halls in hyper-scale data centers.
5000 kW
Heat Transfer Capacity
4°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
95.3 (3+1 pumps, 3x31.8kW)
Power Consumption
3000 / 1500 / 2300 mm
Dimension (L / W / H)
5700 / 6500 kg
Transport /Filled Weight
8 MW FDU
Designed for high-performance computing and GPU-intensive clusters.
8156 kW
Heat Transfer Capacity
2°C
Approach Temperature
3x380-480V AC 50/60 Hz
Power Specifications
95.3 (3+1 pumps, 3x31.8kW)
Power Consumption
4860 / 1800 / 2406 mm
Dimension (L / W / H)
9 877 / 12 037 kg
Transport /Filled Weight
